Remove/Install Side Paneling In Trunk - AR68.30-P-4800LWO
Model 238.3

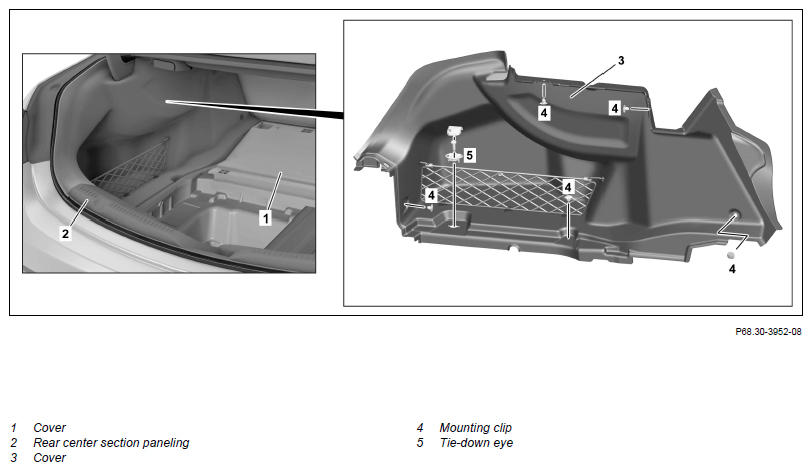

Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trunk floor | AR68.30-P-4600LWO | |
| 2 | Remove rear center section paneling (2) | AR68.30-P-4785LW | |
| 3 | Remove cover (1) | AR68.30-P-4600LWO | |
| 4 | Remove lashing eye (5) | *BA68.50-P-1001-03I | |
| 5 | Remove retaining clips (4) | Fig 1 | |
| 6 | Fold backrest in rear toward front | ||
| 7 | Remove panel (3) | ||
| 8 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA68.50-P-1001-03I | Screw/bolt for tie-down eye | Nm | 24 |
