Remove/Install Mercedes-Benz Intelligent Drive Control Unit - AR54.21-P-0044LWP
Model 238.4
With Code 233 (DISTRONIC PLUS)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission Intelligent Drive control unit (N62/4) | When replacing Intelligent Drive control unit (N62/4). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk recess cover | AR68.30-P-4600LWO | |

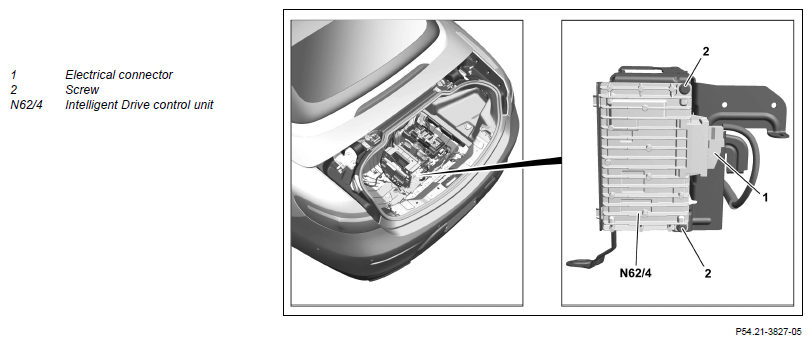

| 4 | Disconnect electrical connector (1) | ||
| 5 | Remove bolts (2) and remove Intelligent Drive control unit (N62/4) | ||
| 6 | Install in the reverse order |
