Remove/Install Fuse And Relay Module In Rear - AR54.15-P-0001LWO
Model 238
Shown On Model 238.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove luggage compartment well cover. | AR68.30-P-4600LWO | |
| 2 | Disconnect ground line from battery. | AR54.10-P-0003LWO | |

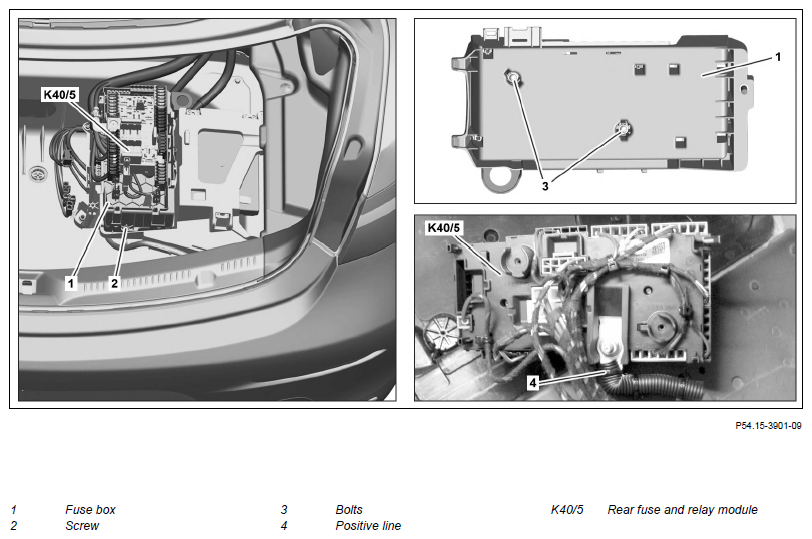

| 3 | Remove screw (2) and remove fuse box (1) from equipment carrier. | The bolt (2) is located in the direction of travel at the front on the fuse box (1). |
|
| 4 | Remove electrical wiring harness from fuse box (1). | ||
| 5 | Remove screw/bolts (3). | ||
| 6 | Remove fuse box (1) from rear fuse and relay module (K40/5). | ||
| 7 | Remove positive line (4) from rear fuse and relay module (K40/5). | *BA54.15-P-1001-01K | |
| 8 | Disconnect all electrical connectors from rear passenger compartment fuse and relay module (K40/5). | ||
| 9 | Unclip all fuse holders and place to one side. | ||
| 10 | Remove rear fuse and relay module (K40/5). | ||
| 11 | Change all fuses and relays. | When replacing the rear fuse and relay module (K40/5). | |
| Assignment of rear fuse and relay module | Model 238 up to model year 2021 |
GF54.15-P-1256-30FH | |
| 12 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 238 | ||
|---|---|---|---|---|
| BA54.15-P-1001-01K | Nut, positive line to rear fuse and relay module | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
