Remove/Install Front Passenger Side Fuse And Relay Module - AR54.15-P-0004LWE

Model 213, 238

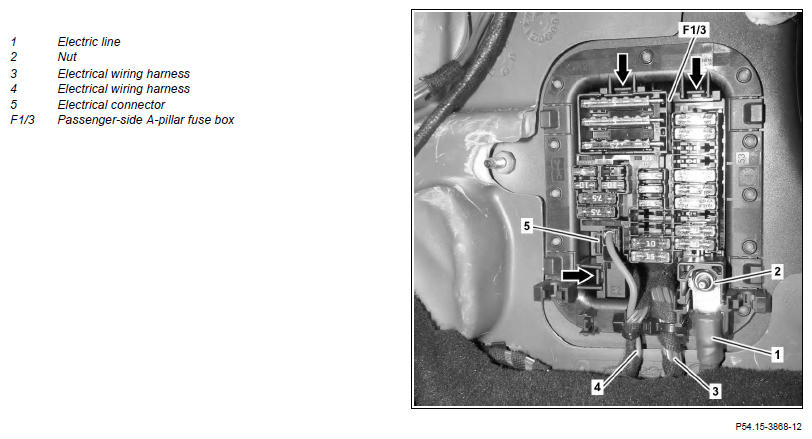

Fig 1: Front Passenger Side Fuse And Relay Module Components Location - Model 238

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect ground line from battery.	Model 238	AR54.10-P-0003LWO
		Model 213	AR54.10-P-0003LW
2	Remove door sill on front passenger side.	Model 238	AR68.30-P-4100CLW
		Model 213	AR68.30-P-4100LW
3	Remove electric line (1) from terminal 30.	Nut (2) remains on electric line (1). Nut, positive line to vehicle interior pre-fuse box	*BA54.15-P-1004-01K
4	Expose electrical wiring harnesses (3, 4).	Replace all cable ties.
5	Disconnect electrical connector (5).
6	Unclip fuse box on front passenger side A-pillar (F1/3) (arrows).	Extraction hook	Fig 4
7	Pull electrical fuses out of fuse box on front passenger side A-pillar (F1/3).
	Assignment of passenger-side A-pillar fuse box	Model 238 up to model year 2021	GF54.15-P-1256-48FH
	Assignment of passenger-side A-pillar fuse box	Model 213 up to model year 2021 Pay attention to the fuse assignment. The number of fuses can vary depending on the equipment installed.	GF54.15-P-1256-48FG

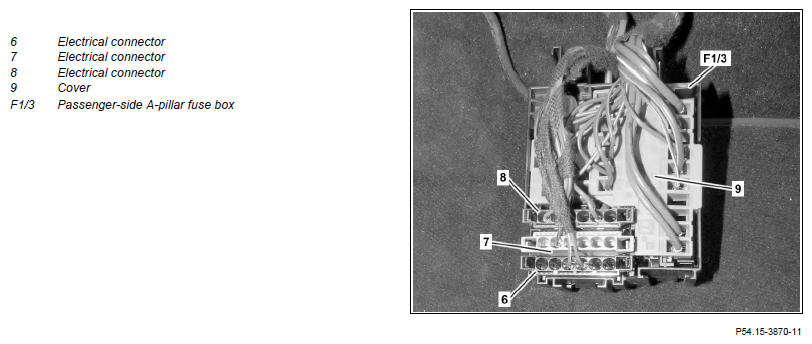

8	Disconnect electrical connectors (6, 7, 8).
9	Remove cover (9) from A-pillar fuse box on front passenger side (F1/3).
10	Unplug electric lines in area of cover (9) from fuse box on front passenger side A-pillar (F1/3).	The number of electrical connectors may vary depending on the equipment. Do not pull out electrical lines from cover (9). Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
11	Remove fuse box on front passenger side A-pillar (F1/3).
12	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			Model 213	Model 238
BA54.15-P-1004-01K	Nut, positive line to vehicle interior pre-fuse box	M6	Nm	8	8
		M8	Nm	16	16

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
