Remove/Install Exterior Light Switch Module - AR54.25-P-3270LW

Model 205, 213, 238, 253, 293

Shown On Model 205

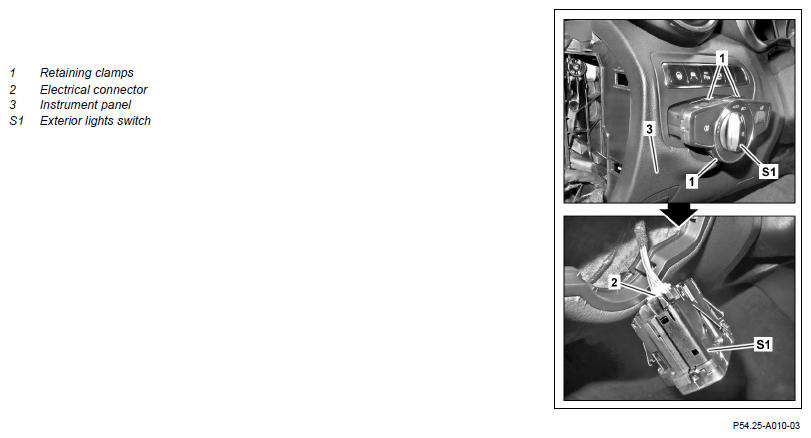

Fig 1: Exterior Light Switch Module Components Location - Model 238 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove driver's side fuse and relay module.	Model 213, 238	AR54.15-P-0003LWE
		Model 205, 253, 293	AR54.15-P-0003LWX
2	Release exterior lights switch (S1) at retaining clamps (1) and pull out far enough to gain access to electrical connector (2).	Release the exterior lights switch (S1) from behind through the opening in the instrument panel (3).
3	Disconnect electrical connector (2) and remove exterior lights switch (S1).
4	Install in the reverse order
