Remove/Install Backup Camera - AR54.65-P-0030LWO
Model 238
With Code 218 (Rear view camera)
Model 238
With Code 501 (360° camera)
MODIFICATION NOTES
| 27.11.2019 | Calibration device added. | Operation step 6.2 |
Shown With Code 218 (Reversing camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove trunk lid external operation switch (S88/8). | AR88.50-P-5090LWO | |
| 3 | Remove reversing camera (B84/3) or rear end 360° camera from trunk lid external operation switch (S88/8). | ||
| 4 | Install in the reverse order. | ||
| Initial startup | |||
| 5 | Commission reversing camera (B84/3) using vehicle diagnosis system. | Model 238 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing reversing camera (B84/3). |
|
| Calibrate | |||
| 6.1 | Calibrate rear 360° camera or reversing camera (B84/3) using diagnostic system. | Model 238 with code 218 (Rear view camera) with code 235 (Active Parking Assist) Model 238 with code 501 (360° camera) |
|
| AD00.00-P-2000-06LWO | |||
| 6.2 | Calibrate reversing camera (B84/3). | Model 238 with code 218 (Rear view camera) except code 235 (Active Parking Assist) | |
| AD00.00-P-2000-06LWO | |||

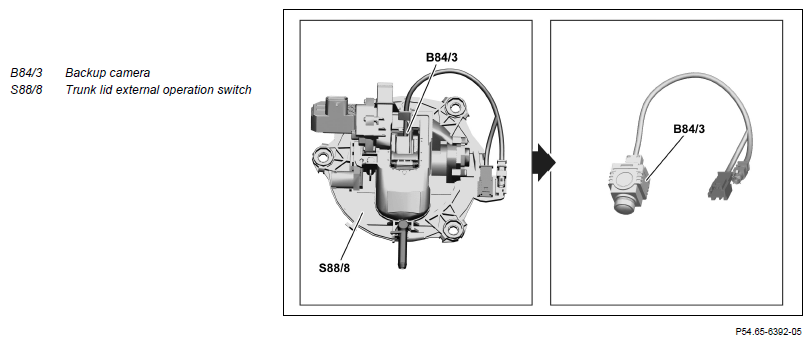

| Fig 1 |
