Remove/Install Trunk Lid External Operation Switch - AR88.50-P-5090LWO

Model 238

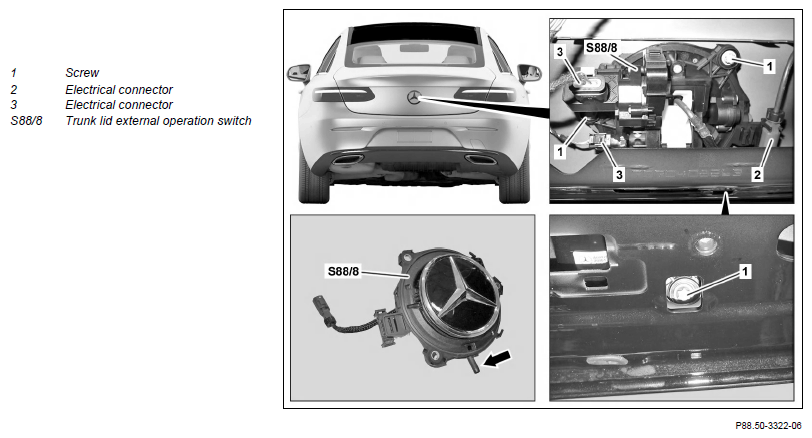

Fig 1: Trunk Lid External Operation Switch Components Location - Model 238

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, Trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove Trunk lid lock.		AR88.50-P-0003LW
2	Release and disconnect electrical connector (3) and unclip.	The number of electrical connections (3) can vary depending on the equipment installed.
3	Disconnect electrical connection (2).	Model 238 with code 218 (Rear view camera) Model 238 with code 501 (360° camera) The number of electrical connections (2) can vary depending on the equipment installed.
4	Unscrew screw/bolts (1).
5	Detach hose from drainage fitting (arrow) of the Trunk lid external operation switch (S88/8).
6	Remove Trunk lid external operation switch (S88/8).
7	Install in the reverse order
