Remove/Install Armrest Heater Control Unit - AR54.21-P-0045LWO
Model 238.3
With Code 906 (Front armrest heater)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission armrest heater control unit (N5) | When replacing armrest heater control unit (N5). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk floor and front cover from trunk | AR68.30-P-4600LWO | |
| 4 | Unclip armrest heater control unit (N5) from holder | ||

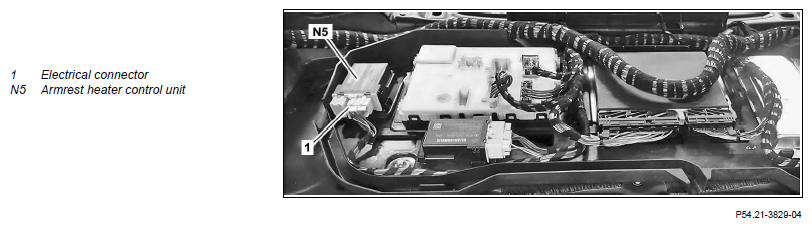

| 5 | Disconnect electrical connector (1) and remove armrest heater control unit (N5) | ||
| 6 | Install in the reverse order |
