Separate A-Pillar Outer Section - Ar63.20-P-1102-01LWO

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N
	Notes on acoustic foam and structural foam in the vehicle		AH60.00-P-0039-01LWO

Model 238.3

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

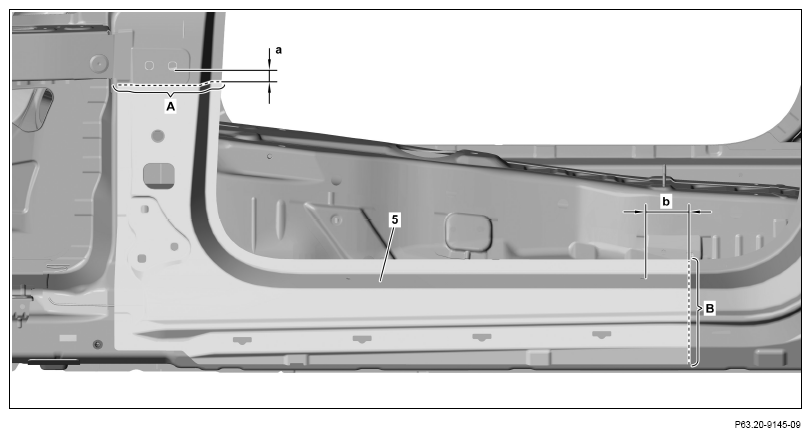

1. Mark separating points on A-pillar paneling (5) and cut (areas A and B).

   Do not make the cuts too deep.

   Component parts located behind this will otherwise be damaged and the strength affected.

   Dimensions:

   a = approx. 40 mm

   b = approx. 80 mm

   Courtesy of MERCEDES-BENZ USA

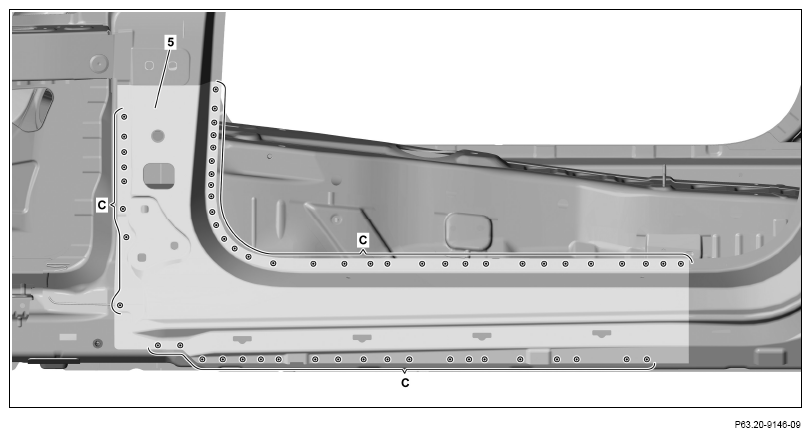

2. Expose spot welds on A-pillar paneling (5) and cut off (area C).

   Cut off common spot welds on panels that are located one behind the other through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

3. Heat A-pillar paneling (5) in cross-hatched areas.

   Cross-hatched areas are bonded.

4. Remove A-pillar paneling (5).

   Courtesy of MERCEDES-BENZ USA

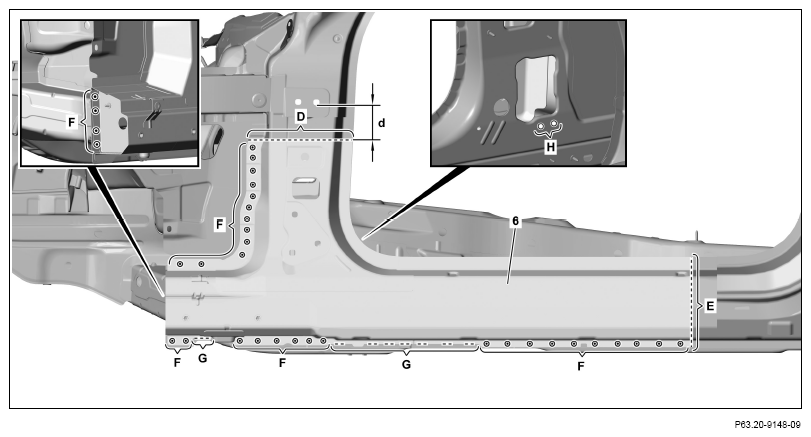

5. Mark separating points on A-pillar reinforcement (6) and cut (areas D and E).

   Do not make the cuts too deep.

   Component parts located behind this will otherwise be damaged and the strength affected.

   Dimensions:

   d = approx. 80 mm

   Mark separating point along Y-marking (area E).

6. Expose spot welds on A-pillar reinforcement (6) and cut off (area F).
7. Expose spot weld on A-pillar reinforcement (6) and drill out with Ø 6.5 mm (area H).
8. Expose solder seams on A-pillar reinforcement (6) and cut (area G).

   Courtesy of MERCEDES-BENZ USA

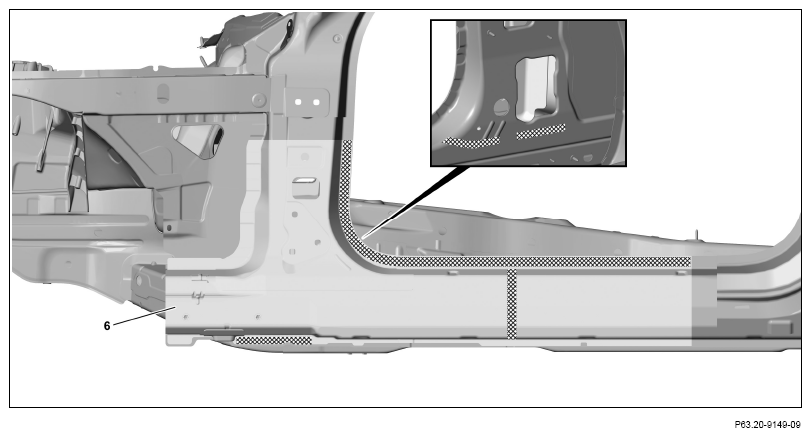

9. Heat A-pillar reinforcement (6) in cross-hatched areas.

   Cross-hatched areas are bonded.

10. Remove A-pillar reinforcement (6).

    Courtesy of MERCEDES-BENZ USA

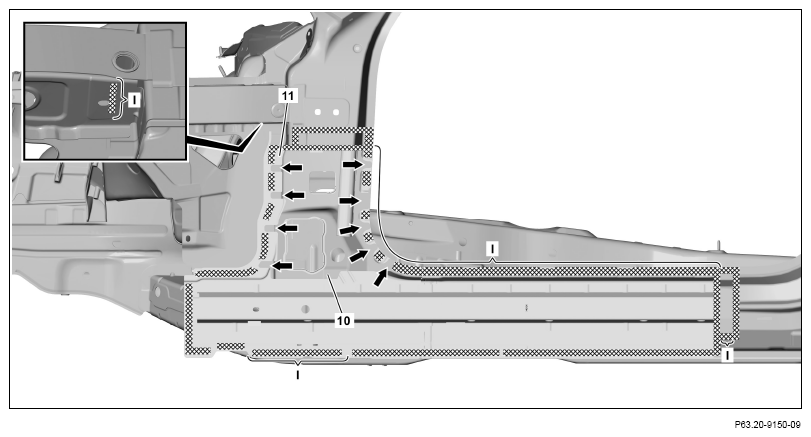

11. Grind mating surfaces down to bare metal in cross-hatched areas.

    Grind spot weld flanges down to bare metal on both sides.

12. Grind mating surfaces between reinforcement (10) and inner A-pillar (11) down to bare metal (arrows).
13. Remove grinding dust and chips from drilling.
14. Apply zinc dust paint to insides of spot weld flanges onto connecting flanges that are no longer accessible after installing side roof paneling.

    Do not coat bonding surfaces with zinc dust paint (area I).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.
