Notes On Acoustic Foam And Structural Foam In The Vehicle - Ah60.00-P-0039-01LWO
Model 238
Position of acoustic foam elements
The acoustic foam elements are positioned at different heights in the area of the sidewall.
Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.

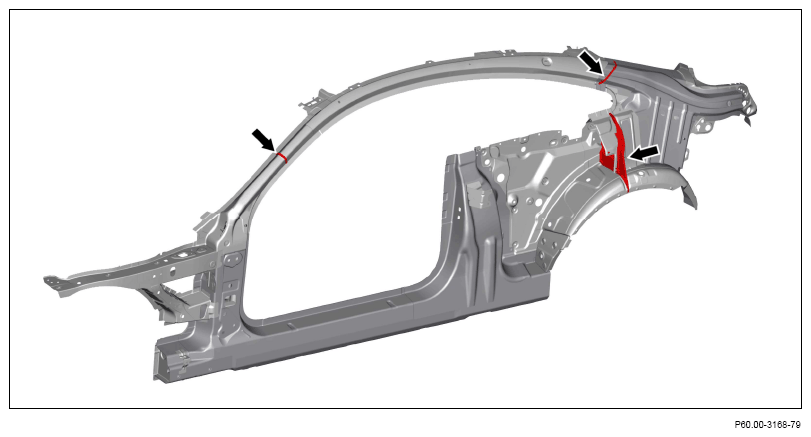

Installation position of acoustic foam elements (arrows) under panel

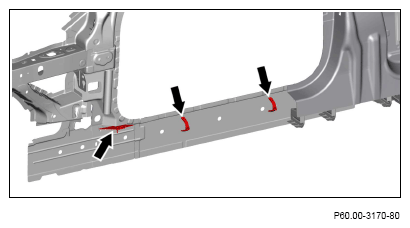

Installation position of acoustic foam elements (arrows) in side outer longitudinal member

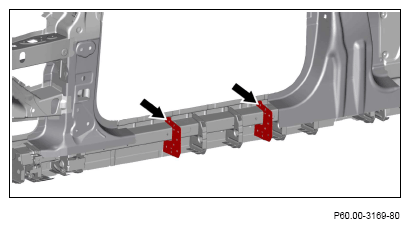

Installation position of acoustic foam elements (arrows) under A-pillar reinforcement and under longitudinal member reinforcement
