Separate A-Pillar Outer Section - Ar63.20-P-1102-01LWA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N
	Notes on acoustic foam and structural foam in the vehicle		AH60.00-P-0039-01LWO

Model 238.4

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

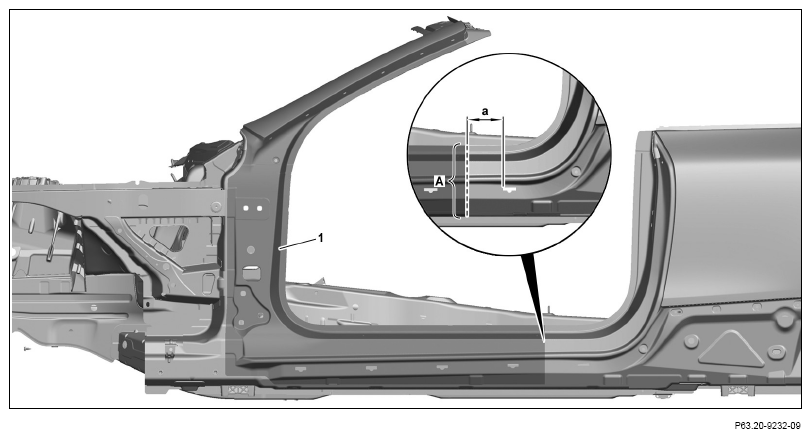

1. Mark separating point on A-pillar paneling (1) and cut (area A).

   Do not cut too deeply.

   The component parts located underneath will otherwise be damaged and the strength affected.

   Dimension  : a = approx. 60 mm

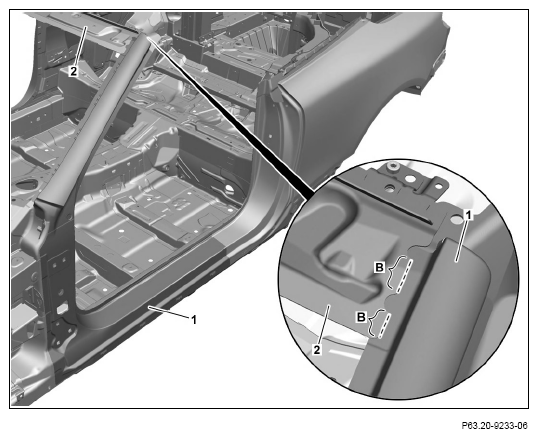

2. Expose MIG solder seams at lugs on roof frame (2) and cut (area B).
3. Bend up shackles (area B) at roof frame (2).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

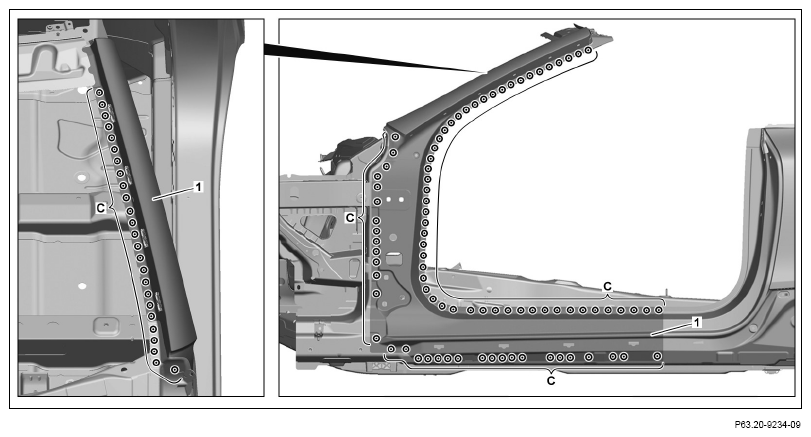

4. Expose spot welds on A-pillar paneling (1) and cut off (area C).

   Courtesy of MERCEDES-BENZ USA

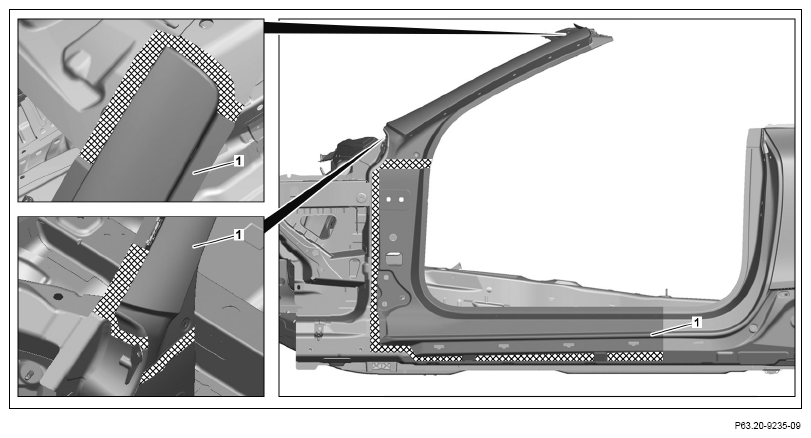

5. Heat A-pillar paneling (1) in cross-hatched areas.

   Cross-hatched areas are bonded.

6. Remove A-pillar paneling (1).

   Courtesy of MERCEDES-BENZ USA

7. Remove sealant (area F).
8. Remove damping (3), check and replace if necessary.

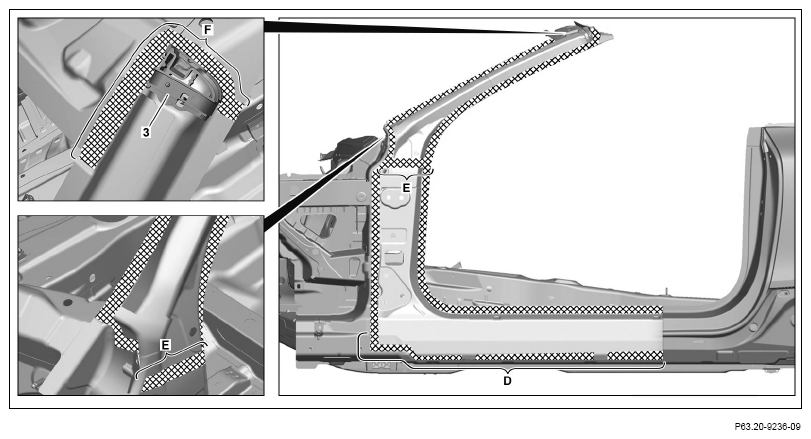

9. Grind mating surfaces down to bare metal in cross-hatched areas.
10. Remove grinding dust.
