Remove/Install Panoramic Sliding Roof Roller Sun Blind Motor/Drive Unit - AR77.21-P-0490LWO
Model 238.3
with code 413 (Automatic panoramic sliding sunroof)

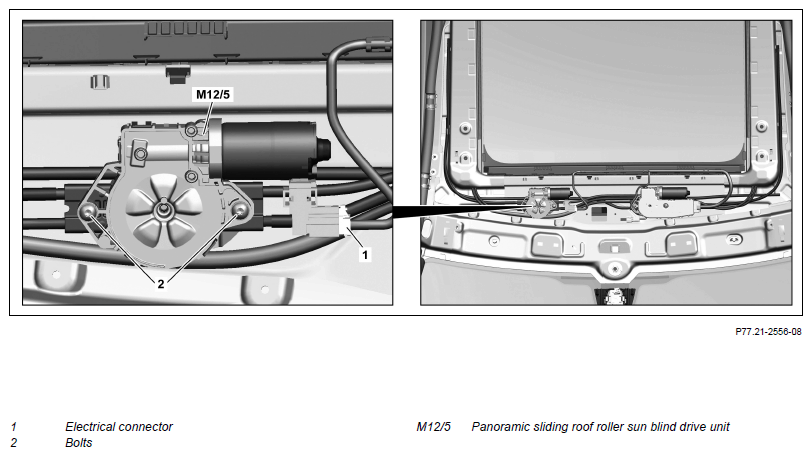

Fig 1: Panoramic Sliding Roof Roller Sun Blind Motor/Drive Unit Components Location - Model 238.3 With Code 413
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove headliner | AR68.30-P-4300LWO | |
| 2 | Release and disconnect electrical connection (1) | ||
| 3 | Unscrew bolts (2) and remove panoramic sliding roof roller sun blind drive unit (M12/5) | ||
| 4 | Install in the reverse order | ||
| 5 | Normalize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | ||
| AD00.00-P-2000-06LWO |
