Retrofit Draft Stop - AN77.25-P-2199LWP

Model 238.4

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove upper left and right trim in rear
			AR68.30-P-4783LWO
2	Remove trim (7) from crossmember at front	The trim (7) at the front on the crossmember without a cutout for a bracket (8) is a discontinued part.
	Install
3	Modify upper trim on the left and right in the rear for retrofitting draft stop (1)		AN77.25-P-2199-01LWP

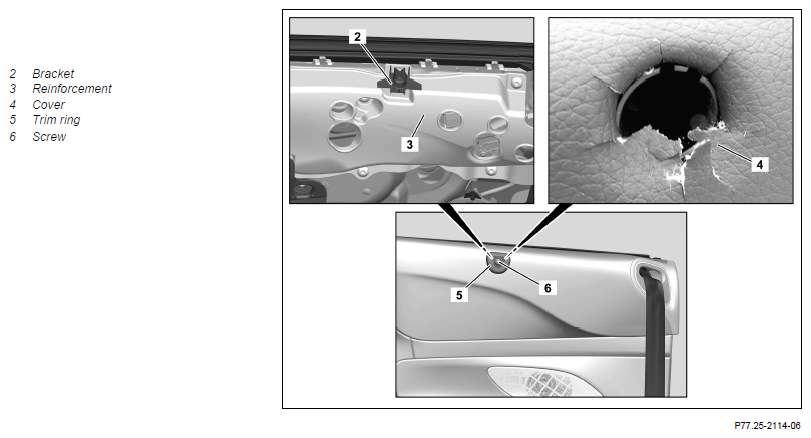

4	Clip bracket (2) into reinforcement (3)
5	Install upper left and right trim in rear
		Hit the extending cover (4) inwards. Remove trim rings (5) and bolts (6) from draft stop parts kit.	AR68.30-P-4783LWO

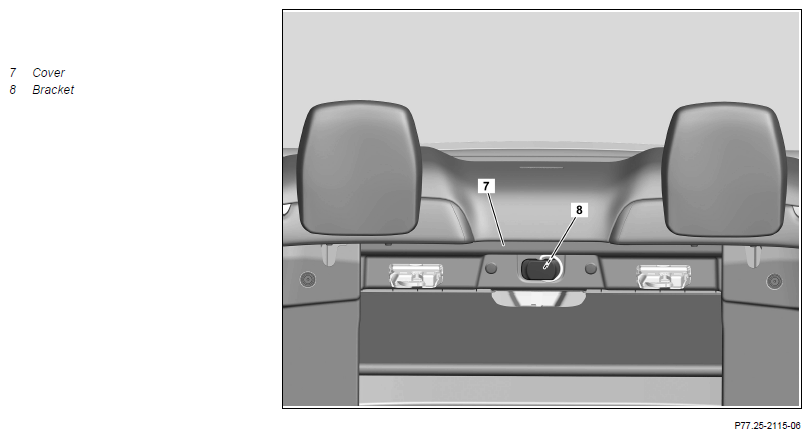

6	Install the new trim (7) at the front on the crossmember with the cutout for a bracket (8).
7	Retrofit bracket (8) for draft stop pocket		AN77.25-P-2199-02LWP
		Holder for pocket for draft stop on cross member	*BA77.25-P-1001-03A

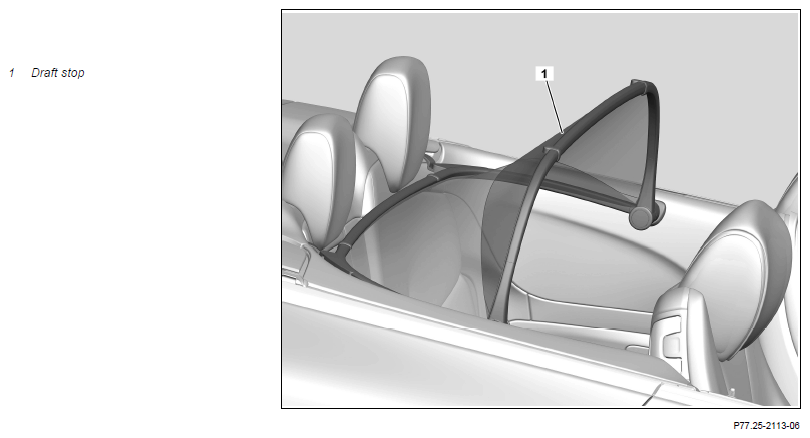

8	Open draft stop (1) and install
	Update Vehicle Documentation (VeDoc)
9	Enter special equipment in online vehicle data card	Code 285 (draft stop)
10	Attach note "Draft stop retrofitted as per AN77.25-P-2199LWP" under field organization texts in DG 92
