Modify Side Paneling In Rear For Draft Stop - AN77.25-P-2199-01LWP

Model 238.4

The modification is shown on left side trim with the side wall soundproofing removed. The modification on the right side trim is made in the same way.

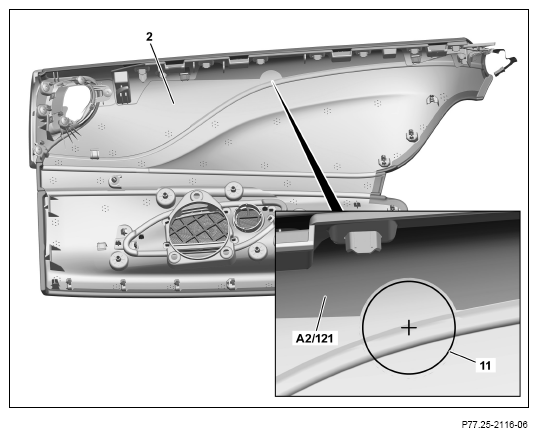

1. Drill through the center of the existing marking (11).

   Use commercially available drill bit Ø5 mm.

2. Drill a hole in the side trim (2) from the inside out to a diameter of 35 mm.

   Carefully drill through the existing marking (11).

   Otherwise, the left rear side trim antenna may be damaged (A2/121).

   Use commercially available step drill bit.

   Courtesy of MERCEDES-BENZ USA

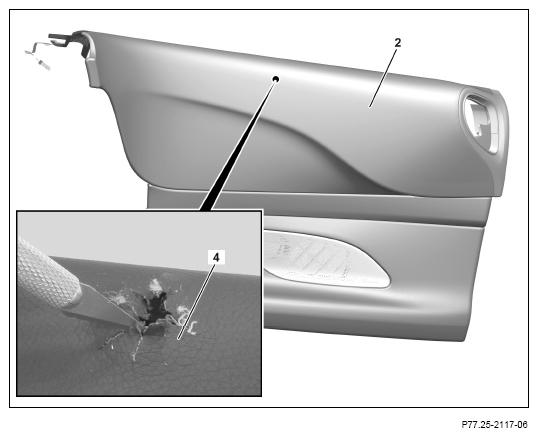

3. Cut in extending cover (4) of side trim (2) several times.

Courtesy of MERCEDES-BENZ USA
