Remove/Install Trim Piece On Passenger-Side Instrument Panel - AR68.10-P-1187LWE
Model 213
Model 238
Shown with code 877 (Ambient lighting)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Move steering wheel all way down and to rear | ||
| 2 | Disconnect battery ground line | Model 238 | AR54.10-P-0003LWO |
| Model 213 | AR54.10-P-0003LW | ||
| 3 | Loosen edge guard in area of cover (10) | ||

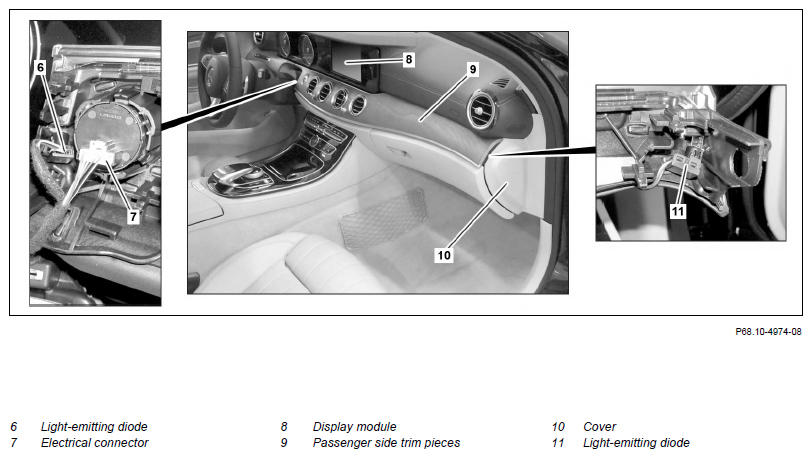

| 4 | Remove cover (10) | Fig 1 | |
| 5 | Remove display module (8) and lay down to side with electrical lines connected | AR54.30-P-6023LWE | |
| 6 | Unclip passenger side trim piece (9) at bottom over entire length | Fig 1 | |
| 7 | Slightly tilt passenger side trim piece (9) upward and remove from instrument panel | ||
| 8 | Disconnect electrical connector (7) | ||
| 9 | Disconnect light emitting diodes (6, 11) from fiber optic cables | Model 213, 238 with code 877 (ambient lighting) | |
| 10 | Remove passenger side trim piece (9) | ||
| 11 | Install in the reverse order |
