Remove/Install Switch For Electric Seat Adjustment - AR91.29-P-2523LW

Model 205, 238, 253, 293

With Code 241 (Memory switch for electrically adjustable front passenger seat, left)

Model 205, 238, 253, 293

With Code 242 (Front passenger seat, electrically adjustable with memory function)

Model 213, 238

With Code 275 (Memory Package (driver's seat, steering column and mirror))

Model 205, 213, 253, 293

With Code 221 (Electrically adjustable left driver seat)

With Code 222 (Electrically adjustable right front seat)

Model 205, 253, 293

With Code 275 (Driver's seat, electrically adjustable with memory function)

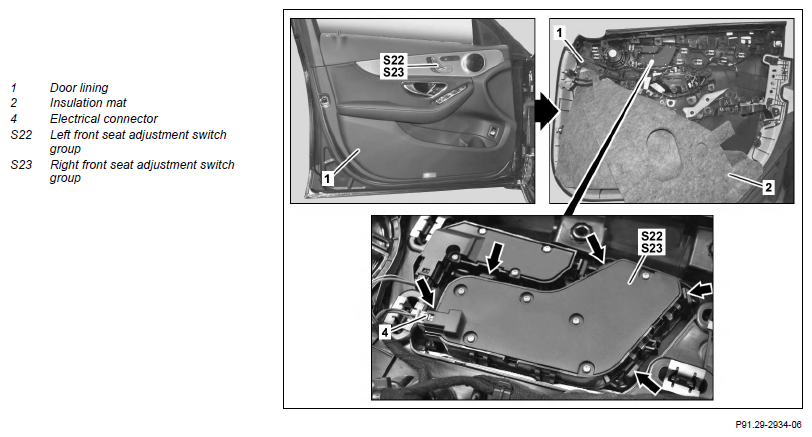

Shown on model 205.0 With Code 275 (Memory Package)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove door lining (1) from front door.	Model 205, 213, 253, 293 with code 221 (Electrically adjustable left driver seat) with code 222 (Electrically adjustable right front seat) Model 205, 253, 293 with code 241 (Memory switch for electrically adjustable front passenger seat, left) Model 205, 253, 293 with code 242 (Front passenger seat, electrically adjustable with memory function) Model 205, 253, 293 with code 275 (Driver's seat, electrically adjustable with memory function) Model 213 with code 275 (Memory Package (driver's seat, steering column and mirror))	AR72.10-P-1000LW
		Model 238 with code 241 (Memory switch for electrically adjustable front passenger seat, left) Model 238 with code 242 (Front passenger seat, electrically adjustable with memory function) Model 238 with code 275 (Memory Package (driver's seat, steering column and mirror))	AR72.10-P-1000LWO
2	Partially unhook insulation mat (2) from door lining (1).
3	Disconnect electrical connection (4).
4	Release front seat adjustment switch group (S22, S23) (arrows) and remove.
5	Install in the reverse order
