Remove/Install Passenger Airbag Unit - AR91.60-P-0680LWP
Model 238.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove display module | AR54.30-P-6023LWE | |
| 2 | Remove glove compartment | AR68.10-P-1402LWE | |
| 3.1 | Remove FM 2, DAB and TV 1 antenna amplifier | Model 238.4## 1# | |
| AR82.62-P-8311LWP | |||
| 3.2 | Remove radio, central locking and KEYLESS-GO antenna amplifier | Model 238.4## 2# | |
| AR82.62-P-8307LWR | |||

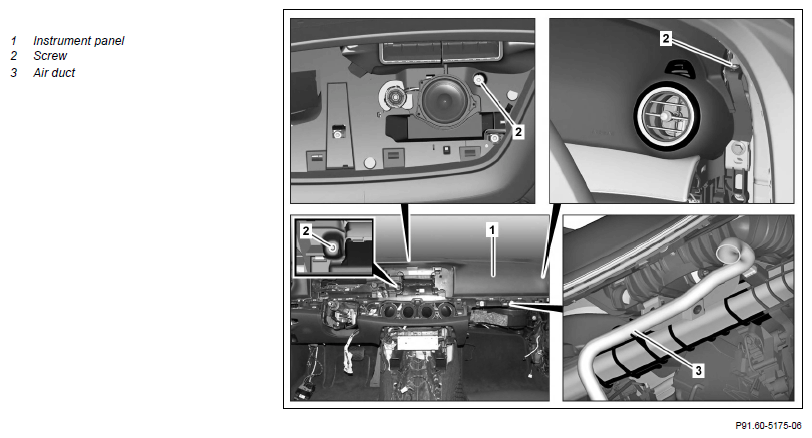

| 4 | Remove screws (2) | ||
| 5 | Remove air duct (3) | ||

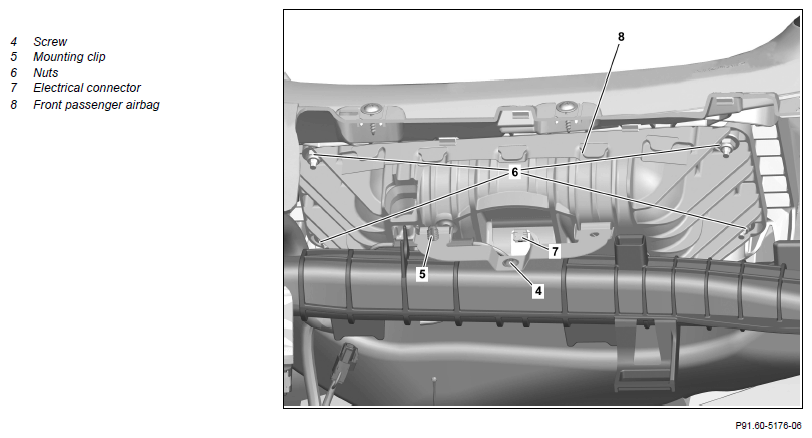

| 6 | Unclip retaining clip (5) from front passenger airbag bracket | Fig 2 | |
| 7 | Remove screw (4) | *BA91.60-P-1002-01O | |
| 8 | Unscrew nuts (6) | *BA91.60-P-1001-01O | |
| 9 | Push instrument panel (1) upwards, and remove front passenger airbag (8) until electrical connection (7) is accessible | ||
| 10 | Disconnect electrical connection (7), and remove front passenger airbag (8) | ||
| 11 | Install in the reverse order | ||
| 12 | Check Supplemental Restraint System (SRS) with diagnostic system | ||
| AD00.00-P-2000-06LWO |
AIRBAG
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA91.60-P-1001-01O | Nut, front passenger airbag unit to instrument panel | Nm | 5 |
AIRBAG
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA91.60-P-1002-01O | Screw/bolt, front passenger airbag unit to crossmember | Nm | 4 |
