Remove/Install Front Seat Belt - AR91.40-P-1010LWP
Model 205.4
With Code 299 (PRE-SAFE®)
Model 238.4
Shown on model 238.4 With Code 810 (Sound system) on left side of vehicle
Shown on left side of vehicle on model 205.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Take reversible belt tensioner into service | When replacing the reversible belt tensioner. | |
| Model 238.4 | AD00.00-P-2000-06LWO | ||
| Model 205.4 with code 299 (PRE-SAFE®) | AD00.00-P-2000-04B | ||
| 2 | Remove lower side trim in rear | Model 205.4 with code 299 (PRE-SAFE®) | AR68.30-P-4784LWR |
| Model 238.4 | AR68.30-P-4784LWO | ||
| 3 | Disconnect battery ground line | Model 205.4 with code 299 (PRE-SAFE®) | AR54.10-P-0003LW |
| Model 238.4 | AR54.10-P-0003LWO | ||

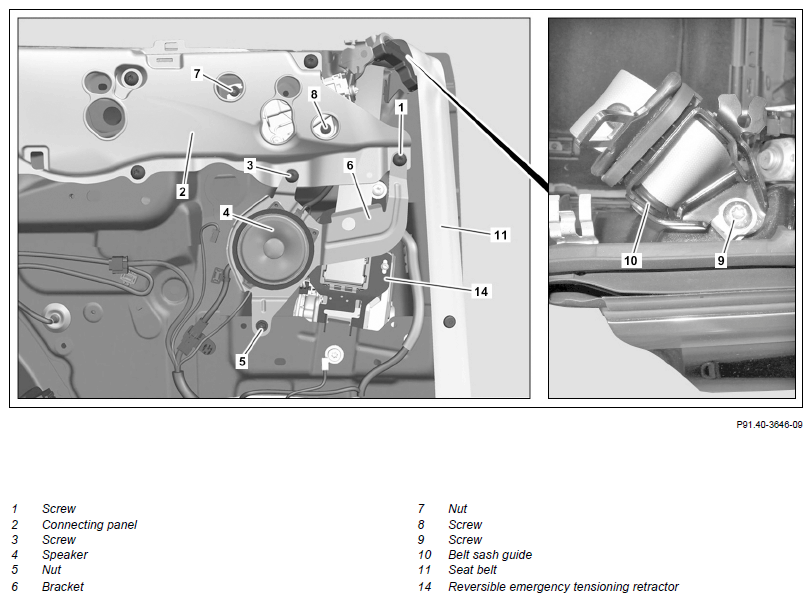

| 4.1 | Remove screw (1) and loosen remaining screws of connecting panel (2) by several revolutions | Model 205.4 with code 299 (PRE-SAFE®) Model 238.4 except code 810 (Premium sound system) |
|
| *BA64.10-P-1001-01D | |||
| 4.2 | Remove screws/bolts (1, 3) and loosen remaining screws/bolts of connecting panel (2 by several revolutions | Model 238.4 with code 810 (Premium sound system) | |
| *BA64.10-P-1001-01D | |||
| 5 | Disconnect electrical connector from speaker (4) | Model 238.4 with code 810 (Premium sound system) | |
| 6 | Unscrew nut (5) and remove bracket (6) with speaker (4) | Model 238.4 with code 810 (Premium sound system) | |
| 7 | Loosen nut (7) and screw/bolt (8) at seat belt extender | ||
| 8 | Remove screw/bolt (9) at belt sash guide (10) | *BA91.40-P-1002-01U | |
| 9 | Insert assembly wedge between connecting panel (2) and body | Fig 1 | |
| 10 | Guide out seat belt (11) between connecting panel (2) and body and place down in vehicle together with belt sash guide (10) | ||
| 11 | Disconnect electrical connector (12) | ||
| 12 | Remove bolts (13) | *BA91.40-P-1001-01U | |

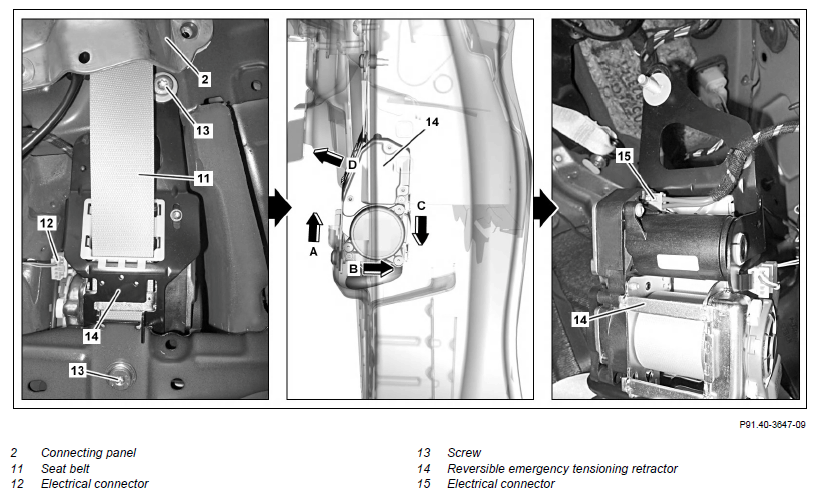

| 13 | Guide out reversible belt tensioner (14) in the sequence shown (arrows A, B, C, D) | ||
| 14 | Disconnect electrical connection (15) | ||
| 15 | Remove seat belt (11) with reversible belt tensioner (14) from vehicle | ||
| 16 | Install in the reverse order | ||
| 17 | Check Supplemental Restraint System (SRS) with diagnostic system | When replacing the reversible belt tensioner (14). | |
| Model 205.4 with code 299 (PRE-SAFE®) | AD00.00-P-2000-04B | ||
| Model 238.4 | AD00.00-P-2000-06LWO | ||
| 18 | Carry out initial startup of PRE-SAFE® system with diagnostic system | When replacing the reversible belt tensioner (14). | |
| Model 205.4 with code 299 (PRE-SAFE®) | AD00.00-P-2000-04B | ||
| Model 238.4 | AD00.00-P-2000-06LWO | ||
| 19 | Check belt adjustment function |
REAR PANEL
| Number | Designation | Model 205.4 | Model 238.4 | |
|---|---|---|---|---|
| BA64.10-P-1001-01D | Bolt, connecting panel to body | Nm | 20 | 20 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | Model 238 | |
|---|---|---|---|---|
| BA91.40-P-1001-01U | Bolt, front seat belt retractor | Nm | 30 | 30 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | Model 238 | |
|---|---|---|---|---|
| BA91.40-P-1002-01U | Bolt, front belt guide bracket | Nm | 30 | 30 |
