Remove/Install Rear Seat Belts - AR91.40-P-0681CLW

Model 205.3, 238.3

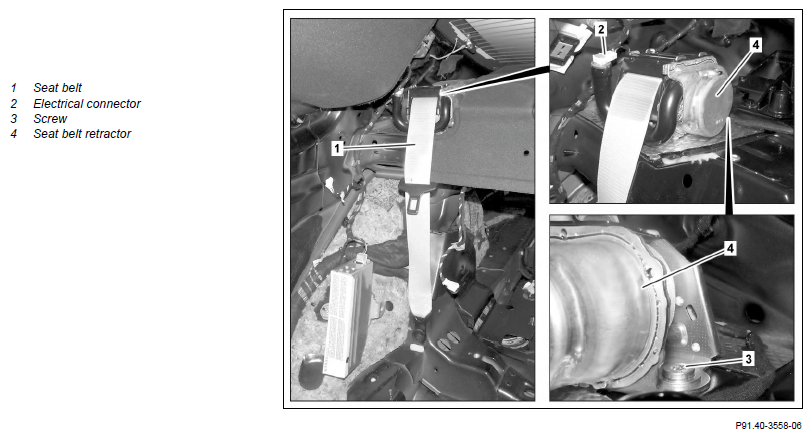

Shown on model 205.3 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove seat cushion in rear	Model 205.3 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238.3	AR91.12-P-1020LW
2	Remove screw of seat belt end fitting	Bolt, rear belt end fitting	*BA91.40-P-1005-01U
3	Remove C-pillar paneling	Model 238.3	AR68.30-P-4490LWO
		Model 205.3	AR68.30-P-4490CLW
4	Disconnect battery ground line	Model 238.3	AR54.10-P-0003LWO
		Model 205.3	AR54.10-P-0003LW
5	Disconnect electrical connection (2)
6	Unscrew bolt (3)	Bolt, rear seat belt retractor	*BA91.40-P-1006-01U
7	Remove seat belt retractor (4) with seat belt (1)	: Ensure correct installation position of belt retractor (4).
8	Install in the reverse order
9	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing the belt retractor (4).
		Model 238.3	AD00.00-P-2000-06LWO
		Model 205.3	AD00.00-P-2000-04B
