Remove/Install Purge Valve - AR47.30-P-8252MSA
Engine 256.9 In Model 213, 238, 257, 290
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MSA | |
| 2 | Remove air intake pipe upstream of air filter. | ||

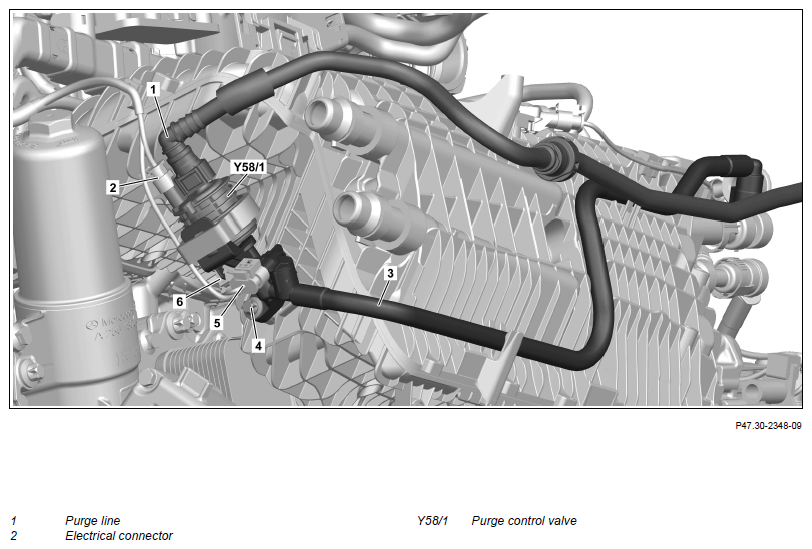

| 3 | Remove purge line (1) from purge control valve (Y58/1) and place to one side. | ||
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Remove purge control valve (Y58/1). | ||
| 6 | Install in the reverse order. |
