Remove/Install Throttle Valve Actuator - AR07.70-P-0005MND
Engine 276.8 In Model 213, 238
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | ||

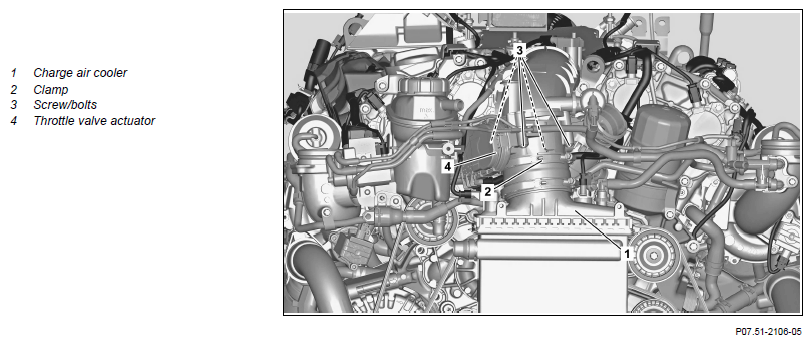

| 2 | Remove charge air cooler (1) and pull with attached lines and coolant hoses to the front | AR09.41-P-6817MND | |
| 3 | Release and disconnect electrical connection from throttle valve actuator (4) | ||
| 4 | Remove screw/bolt (3) | *BA09.20-P-1004-01T | |
| 5 | Remove throttle valve actuator (4) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory | ||
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of burn injuries,
suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
INTAKE MANIFOLD
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA09.20-P-1004-01T | Bolt, air duct housing and throttle valve actuator to air intake pipe | Nm | 7 |
