Remove/Install Rear Engine Support - AR22.10-P-4360MND
Engine 276.8 In Model 213, 238
MODIFICATION NOTES
| 13.09.2017 | Screw rear engine mount to body | Model 213 With Engine 274, 276, 642, 654 | BA22.10-P-1005-03N |

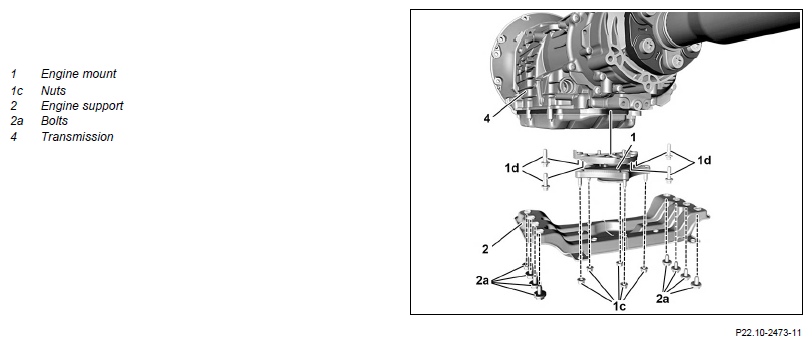

Shown on MODEL 213 with CODE M005 (4MATIC)

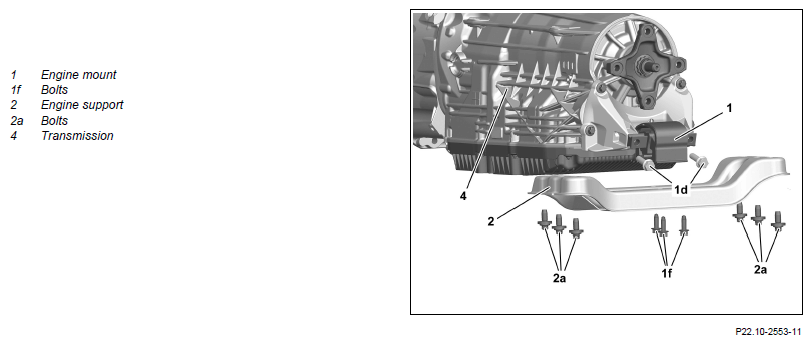

Shown on model 238 without code M005 (4MATIC)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove rear lower engine compartment paneling | AR61.20-P-1105LWE | |
| 2 | Support transmission (4) | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 3 | Remove screw/bolt (2a) | *BA22.10-P-1005-03N | |
Engine 276.8 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, rear engine support to body |
*BA22.10-P-1005-03O | ||
| 4.1 | Unscrew screws/bolts (1f) from engine mount (1) | Engine 276.8 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
*BA22.10-P-1004-03O |
| 4.2 | Unscrew nuts (1c) from engine mount (1) | Engine 276.8 in model 213, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) support |
*BA22.10-P-1004-03N |
| *BA22.10-P-1004-03O | |||
| 5 | Remove engine support (2) | ||
| 6 | Check engine mount (1) for damage | If engine mount (1) is damaged. ↓ Replace engine mount (1). |
AR22.10-P-1160MND |
| 7 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | ||
|---|---|---|---|---|
| BA22.10-P-1004-03N | Rear engine mount to engine support | M6 | Nm | 18 |
| M8 | Nm | 30 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|---|
| BA22.10-P-1004-03O | Rear engine mount to engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 213 with engine 254, 256, 264, 274, 276, 642, 654, 656 | |||
|---|---|---|---|---|---|
| BA22.10-P-1005-03N | Bolt, rear engine support to body | M10 | Stage 1 | Nm | 30 |
| Stage 2 | Nm | 50 | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BA22.10-P-1005-03O | Bolt, rear engine support to body | Stage 1 | Nm | 30 | 30 |
| Stage 2 | Nm | 50 | 50 | ||
