Remove/Install Rear Engine Mount - AR22.10-P-1160MND

Engine 276.8 In Model 213, 238

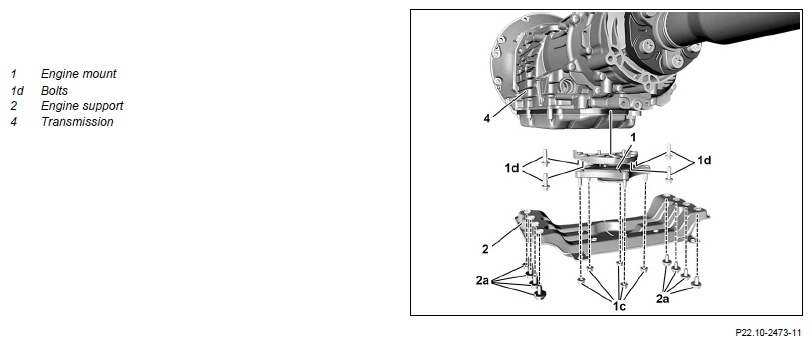

Shown on MODEL 213 with CODE M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

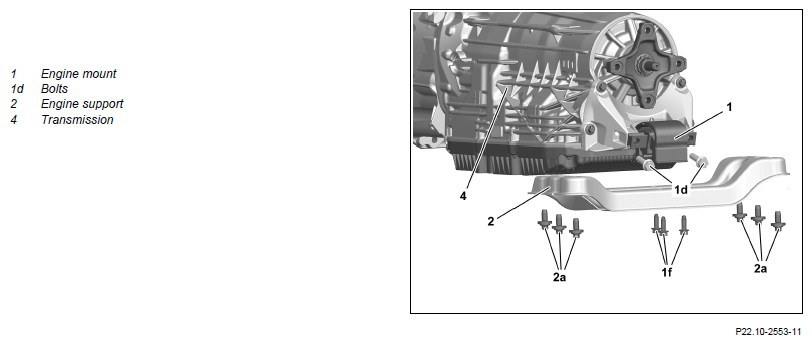

Shown on MODEL 238 without CODE M005 (4MATIC)

Fig 1: Rear Engine Mount Components Location - Engine 276.8 In Model 238 (Shown Without Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove rear lower engine compartment paneling		AR61.20-P-1105LWE
2	Support transmission (4)
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
3	Remove engine supports (2)	Engine 276.8 in model 213, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR22.10-P-4360MND
4	Remove screw/bolts (1) and remove engine/ mount (1)	Engine 276.8 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 276.8 in model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, rear engine mount to bracket transmission	*BA22.10-P-1003-03O
		Engine 276.8 in model 213Bolt, rear engine mount to bracket/transmission	*BA22.10-P-1003-03N
5	Check the engine mount (1) for damage	If the engine mount (1) is damaged. ↓ Replace the engine mount (1).
6	Install in the reverse order
