Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005LWP

Model 238.4

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Release fuse and relay module on driver side
			AR54.15-P-0003LWE
2	Detach door seals from entrance area at left and right
3	Remove left and right front door sills and remove adhesive residue
Topical note	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks	Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia. 100 mm.	AH00.00-P-0013-01AK
		Mounting wedge	Fig 1
4	Remove front floor covering on driver side
			AR68.20-P-2060LWE
5	Remove front floor covering on passenger side
			AR68.20-P-2065LWE
6	Remove front footrest on passenger side
	Install
7	Fit illuminated door sill molding control unit with Mercedes-Benz lettering to the front		AZ82.20-P-0001-05LWP
8	Fit electrical wiring harness of illuminated door sill molding with Mercedes-Benz lettering to the front		AZ82.20-P-0005-01LWP
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Right front footwell ground point	*BA00.19-P-1013-02B

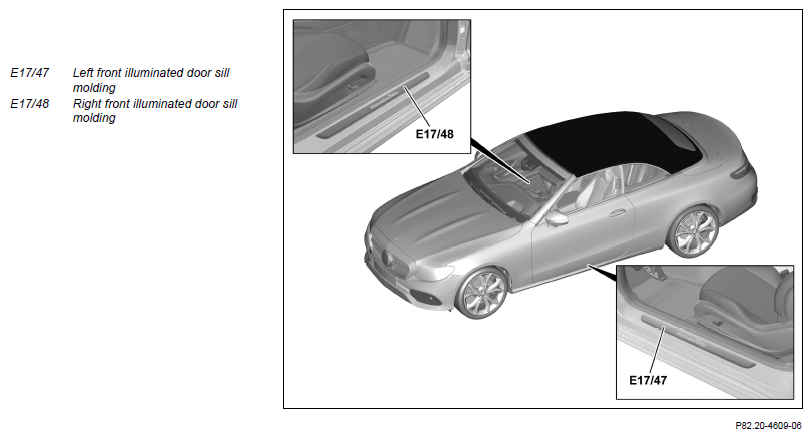

9	Install left front illuminated door sill molding (E17/47) and right front illuminated door sill molding (E17/48)	Retrofit front illuminated door sill molding with Mercedes-Benz lettering	AZ82.20-P-0005-10LWP
		Cleaner	*BR00.45-Z-1025-04A
	Check
10	Carry out function check	Front left illuminated door sill molding (E17/47) or front right illuminated door sill molding (E17/48) is switched on by opening the corresponding front door. Automatic shutoff takes place after approx. 5 min.
	Install
11	Install remaining parts
	Update Vehicle Documentation (VeDoc)
12	Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0005LWP" under field organization texts to design groups 68 and 82

GROUND POINTS

Number	Designation			Model 238
BA00.19-P-1013-02B	Right front footwell ground point	W15/7	Nm	10

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Parts kit for illuminated door sill moldings	1
