Retrofit Control Unit - AZ82.20-P-0001-05LWP
Model 238.4
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
- Stick felt tape (6) to upper side of illuminated door sill molding control unit (1).
- Stick commercially available velcro strips (7) to lower side of illuminated door sill molding control unit (1).
- Pull off carrier foils from velcro strips.

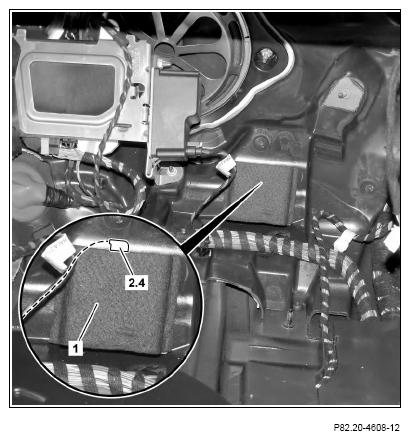

- Bond illuminated door sill molding control unit (1) onto firewall.
Black 18-pin connector socket (2.4) of illuminated door sill molding wiring harness is connected to illuminated door sill molding control unit (1) at a later point in time.
