Retrofit CD Drive - AZ82.64-P-0002LWO

Model 238.3

as of model year 2019

with code 531 (COMAND APS)

except code 058 (Modification year 17/2)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Model 238.3

with code 058 (Modification year 17/2)

with code 531 (COMAND APS)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove box
			AR68.10-P-1402LWE
2	Remove fragrance generator
		Model 238.3 with code P21 (Air Quality package)	AR83.40-P-0200LWO
3	Remove head unit
			AR82.85-P-1101LWE
4	Detach HERMES control unit from holder and place to one side with attached lines
			AR82.95-P-0019LWE
5	Detach driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 238.3 up to model year 2021	GF54.15-P-1256-49FH
	Wiring diagram for driver-side fuse and relay module	Model 238.3 as of model year 2021	PE54.15-P-2104DEA
		Until slot 204 is accessible.	AR54.15-P-0003LWE
6	Remove entrance plate on driver side
			AR68.30-P-4100CLW
7	Remove bottom paneling for dashboard on driver side
			AR68.10-P-1501LWE
	Install
8	Produce a drilling template for the CD drive bracket (1)	Model 238.3## 1#	AZ82.64-P-0002-04LWE
		Model 238.3## 2#	AZ82.64-P-0002-04LWR
9	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LWE
10	Prepare holder for CD drive (1) for installation		AZ82.64-P-0002-06LWE
11	Prepare glove box for installation of CD drive (1)	Model 238.3## 1#	AZ82.64-P-0002-08LWE
		Model 238.3## 2#	AZ82.64-P-0002-08LWR
12	Retrofit wiring harness for CD drive (1)		AZ82.64-P-0002-01LWE
		Left footwell ground point	*BA00.19-P-1023-02B
13	Insert 5 A fuse into slot 204 of driver's side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 238.3 up to model year 2021	GF54.15-P-1256-49FH
	Wiring diagram for driver-side fuse and relay module	Model 238.3 as of model year 2021	PE54.15-P-2104DEA
14	Place glove box in front passenger footwell

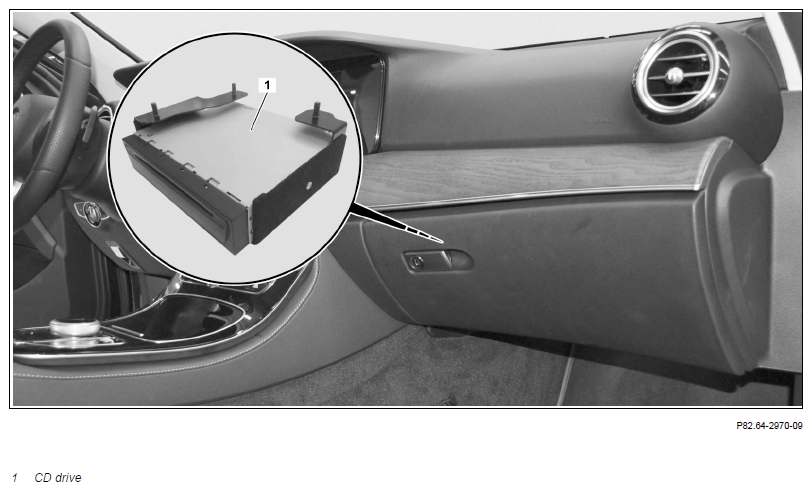

15	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LWE
16	Install glove box with CD drive (1)
		Pay attention to installation of lines.	AR68.10-P-1402LWE
17	Install remaining parts
	Update Vehicle Documentation (VeDoc)
18	Enter special equipment in online vehicle data card	Code 320 (Single CD drive pre-installation)
19	Attach note "CD drive retrofitted as per AN82.64-P-0002LWO" under field organization texts	In design group 54 and design group 82.
20	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-06LWO
21	Carry out variant coding using software calibration number (SCN)	Head unit
22	Disconnect diagnostic system
			AD00.00-P-2000-06LWO
	Check
23	Perform function test	See Owner's Manual.

Number	Designation			Model 238
BA00.19-P-1023-02B	Left footwell ground point	W34	Nm	10

Part no.	Designation	Quantity
KG 98 (see EPC)	CD drive scope of delivery	1
