Fabricate Drilling Template For CD Drive Holder - AZ82.64-P-0002-04LWE

Model 213.0##/2## 1#

Model 238.3## 1#

Model 257.### 1#

Model 290.### 1#

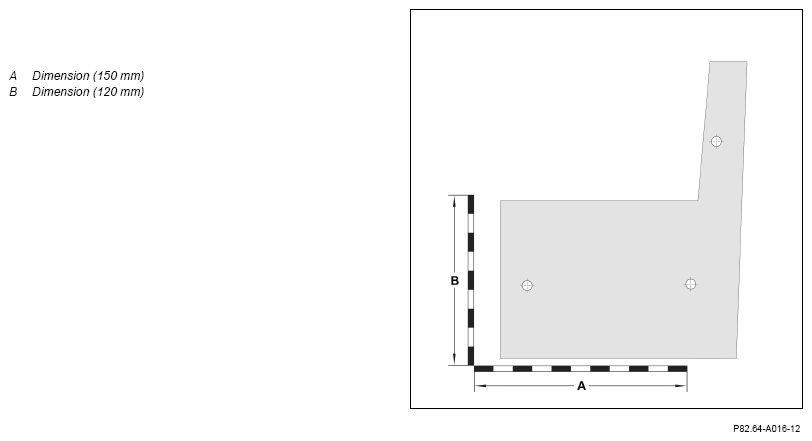

Drilling template

Courtesy of MERCEDES-BENZ USA

1. Print out drilling template drawing.
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed drilling template to original size using the determined scaling factor.
5. Cut out drilling template.
