Remove/Install TV Antenna Amplifier Under Right C-Pillar Trim - AR82.62-P-8303LWO
Model 238.3
With Code 865 (digital TV)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

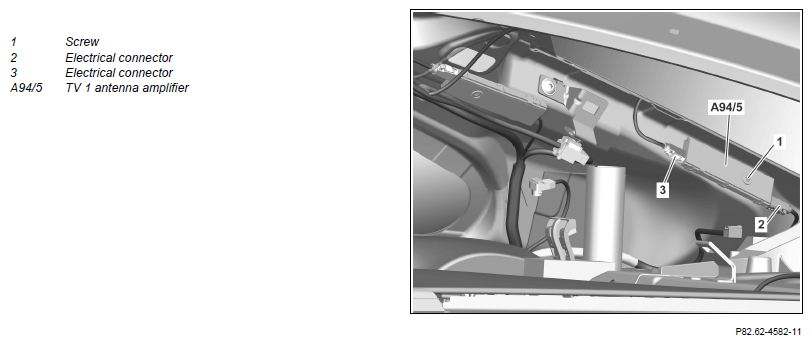

| 1 | Remove rear shelf. | AR68.30-P-4581LWO | |
| 2 | Disconnect electrical connector (3). | ||
| 3 | Unscrew bolt (1). | ||
| 4 | Unclip TV 1 antenna amplifier (A94/5) from C-pillar and disconnect electrical connector (2). | ||
| 5 | Install in the reverse order |
