Remove/Install Rear Shelf - AR68.30-P-4581LWO
Model 238.3
Shown with code 540 (Electric roller sunblind for rear window) and code 810 (Sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right and left C-pillar trim (2) | AR68.30-P-4490LWO | |

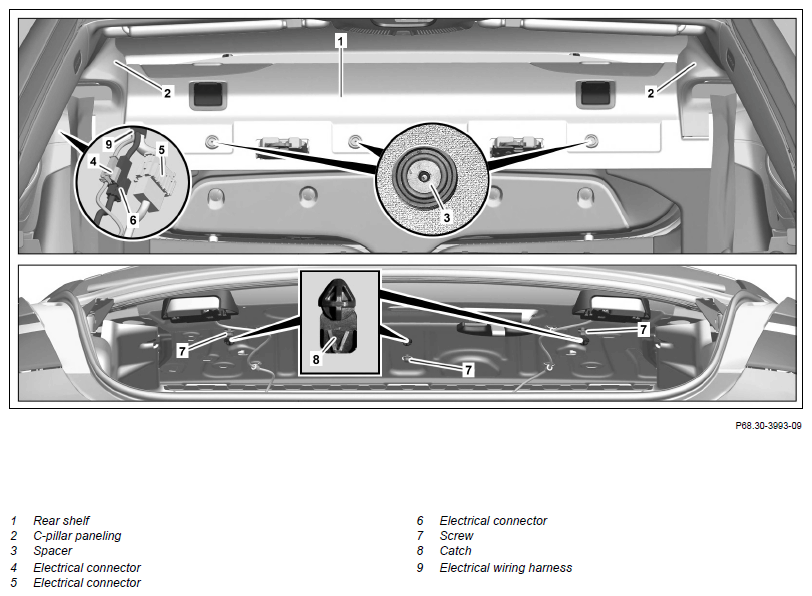

| 2 | Remove spacers (3) | Fig 1 | |
| 3 | Disconnect electrical connector (4) | ||
| 4 | Disconnect electrical connection (5) | Model 238.3 with code 810 (Sound system) Model 238.3 with code 811 (Advanced sound system) |
|
| 5 | Disconnect electrical connector (6) | Model 238.3 with code 540 (Electric sunblind for rear window) | |
| 6 | Remove electrical wiring harness (9) from body | ||
| 7 | Detach screws (7) | Model 238.3 with code 540 (Electric sunblind for rear window) | |
| 8 | Release catches (8) of rear shelf (1) and slightly push rear shelf (1) towards front | ||
| 9 | Remove rear shelf (1). | ||
| 10 | Install in the reverse order |
