Remove/Install Ignition Coils Of Right Cylinder Bank - AR15.12-P-2009MNE
Engine 177 in model 213
MODIFICATION NOTES
| 22.01.2020 | Remove engine wiring harness bracket from shield and place to one side. | Operation step 2 | |
| 23.01.2020 | Disconnect vacuum hose from vacuum pump. | Operation step 4 |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | ||
| Remove/install | |||
| 1 | Release motor control module bracket and place to one side. | AR07.08-P-7016MNE | |

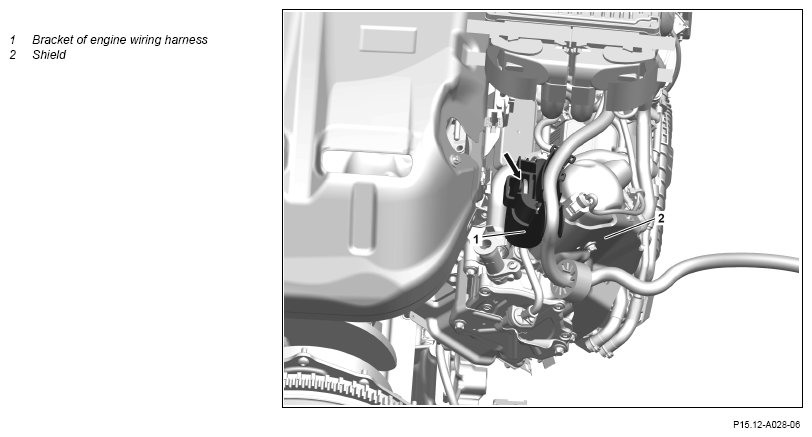

| 2 | Release engine wiring harness bracket (1) at (arrow) from shield (2) and place to one side. | ||

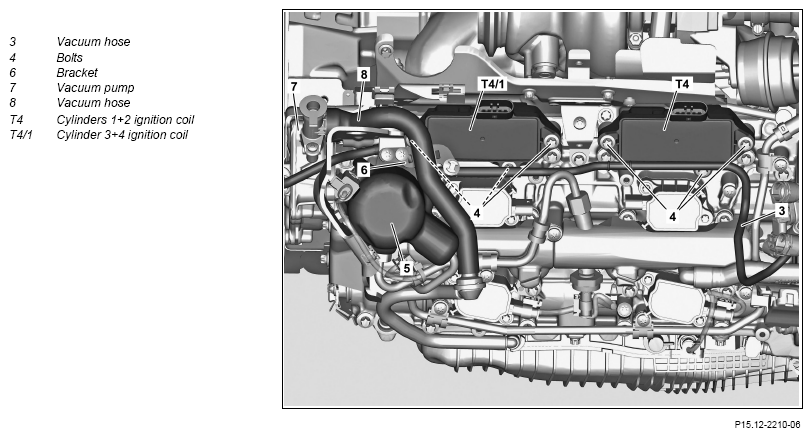

| 3 | Remove screws of bracket (6). | *BA00.10-P-1002-04A | |
| 4 | Disconnect vacuum hose (8) from vacuum pump (7), place to one side and seal openings with suitable stop plugs. | Fig 2 | |
| 5 | Unclip vacuum hose (3) from the cylinder head cover and place to one side. | ||
| 6 | Remove screws (4). | *BA15.10-P-1001-04D | |
| 7 | Withdraw ignition coil for cylinders 1+2 (T4) upwards and remove. | ||
| 8 | Withdraw ignition coil for cylinders 3+4 (T4/1) upwards and remove. | ||
| 9 | Check ignition coil for cylinders 1+ 2 (T4) and ignition coil for cylinders 3+ 4 (T4/1) for damage. | If problems exist, ↓ Replace the appropriate ignition coil (T4 or T4/1). |
|
| 10 | Discharge approx. Apply about 1 g of spark plug connector grease to the spark plug connector. | Apply spark plug connector grease to reduce pull-off and attachment forces Otherwise the spark plug connectors will be damaged upon renewed removal. |
|
| Spark plug connector grease | *BR00.45-Z-1102-06A | ||
| 11 | Install in the reverse order. | ||
| 12 | Read out and delete fault memory. | ||
| AD00.00-P-2000-04B |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
IGNITION COIL
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1001-04D | Bolt, ignition coil to cylinder head cover | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1102-06A | Spark plug connector grease | A 002 989 80 51 |
