Remove/Install Coolant Circuit Vent Line Of Right Turbocharger - AR20.20-P-1201MNE
Engine 177 in Model 213

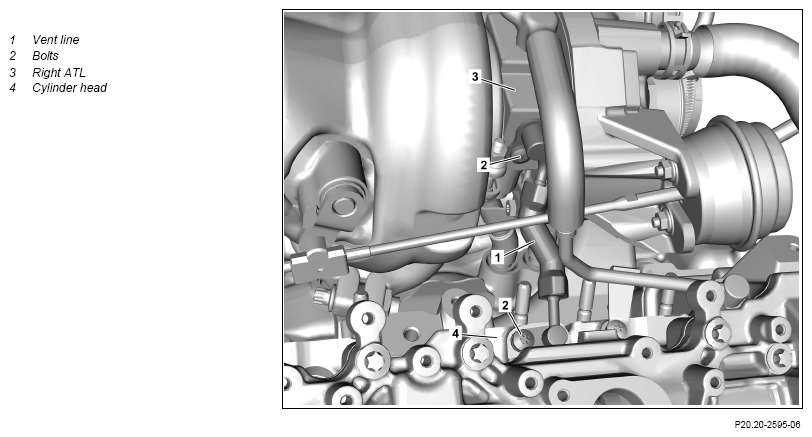

Fig 1: Coolant Circuit Vent Line Of Right Turbocharger Components Location - Engine 177 In Model 213
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNE | |
| 2 | Remove ignition coil from 1st and2nd cylinders | AR15.12-P-2009MNE | |
| 3 | Remove heat shield from right turbocharger | AR09.40-P-6027-00MNE | |
| *BA09.40-P-1007-01ZA | |||
| 4 | Clean area of vent line (1) on right turbocharger (3) and cylinder head (4) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Remove screw/bolts (2) | *BA09.40-P-1004-01ZA | |
| 6 | Remove vent line (1) and seal openings with suitable stop plugs | ||
| Fig 2 | |||
| 7 | Install in the reverse order |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1004-01ZA | Bolt, coolant line to turbocharger/cylinder head | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
