Remove/Install TV Tuner - AR82.85-P-7366LWE
Model 213
with code 865 (digital TV)
Shown on model 213.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | Model 213 with code 865 (digital TV) with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Carry out initial startup of TV tuner control unit (N143) | When replacing the TV tuner control unit (N143). | |
| AD00.00-P-2000-04B | |||
| 2.1 | Remove right side trunk lining | Model 213.0/1 with code 865 (digital TV) | AR68.30-P-4800LWE |
| 2.2 | Remove right side load compartment paneling | Model 213.2 with code 865 (digital TV) | AR68.30-P-1185LWE |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

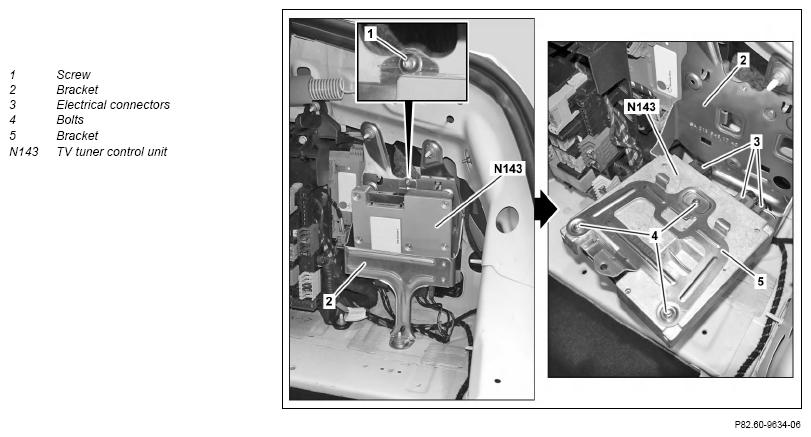

| 4 | Remove bolt (1) | ||
| 5 | Extend TV tuner control unit (N143) with bracket (5) out of bracket (2) | ||
| 6 | Disconnect electrical connectors (3) and cover optical fibers | ||
| 7 | Remove TV tuner control unit (N143) with bracket (5) | ||
| 8 | Unscrew screws/bolts (4) and remove bracket (5) | When replacing the TV tuner control unit (N143). | |
| 9 | Install in the reverse order |
