Remove/Install Remote Park-Pilot/Stationary Heater Antennas - AR82.70-P-0009LWT

Model 213.2

with code 503 (Remote-controlled parking)

Model 213.2

with code B24 (Remote control for Auxiliary heating)

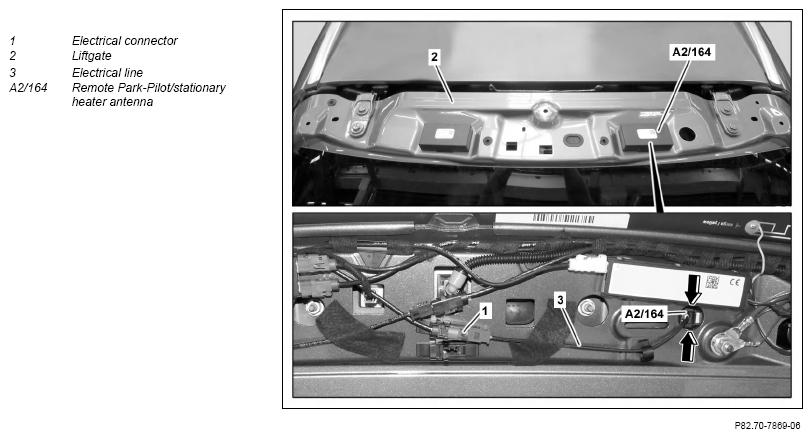

Fig 1: Remote Park-Pilot/Stationary Heater Antennas Components Location - Model 213.2 With Codes 503; B24

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS	Model 213.2 with code 503 (Remote-controlled parking) with code P17 (KEYLESS-GO package) Model 213.2 with code B24 (Remote control for Auxiliary heating) with code P17 (KEYLESS-GO package)	AH80.61-P-0001-01A
	Remove/install
1	Remove roof spoiler		AR82.10-P-5376LWT
2	Disconnect electrical connector (3) and unclip electrical line (1)
3	Release antenna for remote Parking Pilot/stationary heater (A2/164) (arrows) and remove from liftgate (2)
4	Install in the reverse order
