Check Wiper Arms And Adjust - AR82.30-P-6000LW

Model 205

Model 213

Model 238

except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Model 253, 293

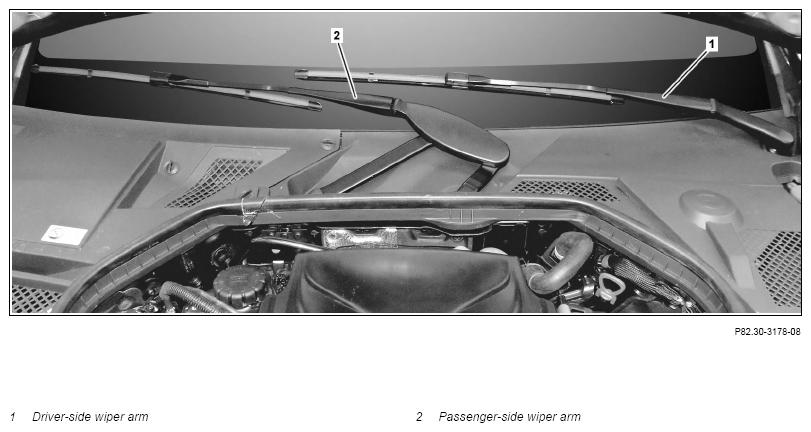

Fig 1: Wiper Arms Components Location - Model 213 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Shown on model 205

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
	Check
1	Move windshield wiper system into park position.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Move windshield wiper system by hand into reversing position.	Do not move the windshield wiper system beyond the reversing position.
4	Remove wiper blades.	When working on raised driver-side wiper arm (1) or passenger-side wiper arm (2), ensure that they do not fall onto the windshield. Otherwise windshield will be damaged.
	Clean
5	Clean wiper blade mounts on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth.
6	Check angle of incidence of driver-side wiper arm (1) and passenger-side wiper arm (2) relative to windshield.		AR82.30-P-6000-01LW
		When changing from the reversing position to the park position, ensure that the driver-side wiper arm (1) and the passenger-side wiper arm (2) do not make direct contact with windshield. Otherwise windshield will be damaged. Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 4
	Adjust
7	Adjust angle of incidence of driver-side wiper arm (1) or passenger-side wiper arm (2) in the park position.	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position.	AR82.30-P-6100-01LW
		Distort driver-side wiper arm (1) or passenger-side wiper arm (2) by at least the value of the tolerance deviation in reversing position. Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 4
8	Adjust windshield wiper system.	When the check values of the driver-side wiper arm (1) and passenger-side wiper arm (2) deviate from the tolerance range in the parking position.	AR82.30-P-6400-01LW
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Screw/bolt, windshield wiper system bracket to partition wall	*BA82.30-P-1004-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 4
		Extraction hook	Fig 3
9	Mount wiper blades.

Fig 2: Identifying Adapter (205 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
