Adjust Passenger Door - AR72.10-P-0552LW

Model 205

Model 213

Model 253

Model 293

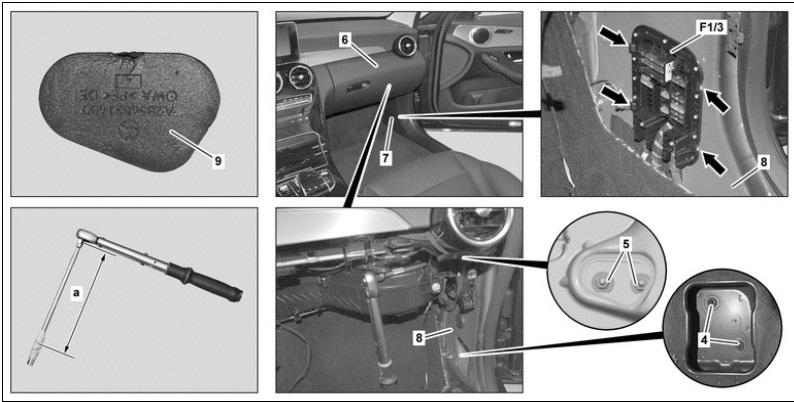

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

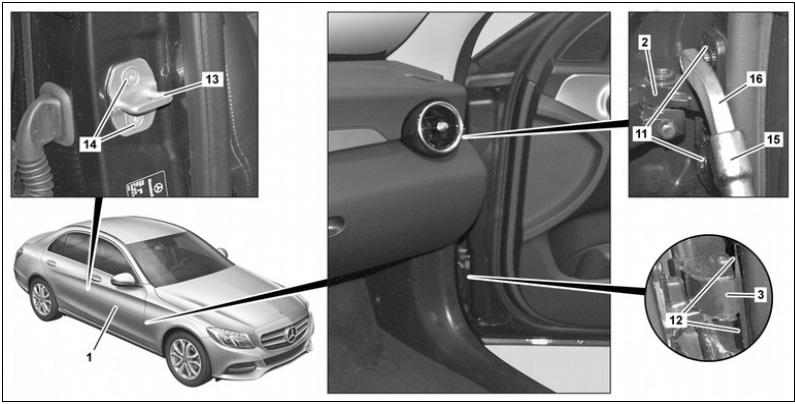

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Switch off the ignition and keep the transmitter key outside the transmission range (at least 2 m).
2	Unscrew bolts (14) and remove lock striker (13)
	Check
3	Check adjustment of Front passenger door (1)	Model 205, 253, 293	AR60.00-P-0700-01LW
		Model 213	AR60.00-P-0700-01LWE
		The contour of the Front fender must align with the contour of the Front passenger door (1) or project by a maximum of 1 mm.
		Model 293 Front door trim to Rear door trim	*BE60.00-P-1011-01OA
		Model 293 Front door to Rear door	*BE60.00-P-1009-01OA
		Model 293 Front door to fender	*BE60.00-P-1008-01OA
		Model 205 Front door to fender	*BE60.00-P-1008-01BB
		Model 205.0/1/2 Front door to Rear door	*BE60.00-P-1009-01BB
		Model 205.0/1/2 Front door trim to Rear door trim	*BE60.00-P-1011-01BB
		Model 205.3/4 Panel side member to Front door	*BE60.00-P-1030-01BB
		Model 205.3/4 Front door to side wall	*BE60.00-P-1007-01BB
		Model 205.3/4 Front door window to Rear side window	*BE60.00-P-1029-01BB
		Model 213 Front door to fender	*BE60.00-P-1007-01GA
		Model 213 Front door to Rear door	*BE60.00-P-1008-01GA
		Model 213 Front door trim to Rear door trim	*BE60.00-P-1010-01GA
		Model 253 Front door to fender	*BE60.00-P-1006-01FA
		Model 253 Front door to Rear door	*BE60.00-P-1007-01FA
		Model 253 Front door trim to Rear door trim	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1
	Remove
4	Remove glove box (6).	When adjusting gap dimensions. Model 205, 253, 293	AR68.10-P-1400LW
		Model 213	AR68.10-P-1402LWE
5	Remove door sill paneling (7)	When adjusting gap dimensions. Model 205.0/1/2, 213, 253, 293	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
6	Disconnect the battery ground lead.	When adjusting gap dimensions. Model 205, 213, 253	AR54.10-P-0003LW
		Model 293	AR54.10-P-0003EQ
7	Unclip right A-pillar fuse box (F1/3) from A-pillar (8) (arrows) and lay down to side	When adjusting gap dimensions. Do not disconnect the electrical lines from the A-pillar fuse box on the passenger side (F1 / 3).
8	Remove top insulation insert (9).	When adjusting gap dimensions. The upper A-pillar insulation insert (9) is inserted into the A-pillar (8) before the nuts (5).
9	Adjust  Loosen nuts (4, 5) on A-pillar (8), adjust Front passenger door (1) and tighten corresponding nuts (4, 5)	When adjusting gap dimensions. The nuts (4, 5) must not be loosened at the same time. If the Front passenger door (1) comes into contact with other components, the paint can be damaged. Do not tension hinges (2, 3) when adjusting. Otherwise the hinges (2, 3) can be damaged. Model 205.3/4 Three nuts (4) are installed. To loosen and tighten nuts (5) a socket wrench extension with a length of (a) 250 mm and a socket wrench joint are required in addition.
		Model 293 Front door trim to Rear door trim	*BE60.00-P-1011-01OA
		Model 293 Front door to Rear door	*BE60.00-P-1009-01OA
		Model 293 Front door to fender	*BE60.00-P-1008-01OA
		Nut hinge on A-pillar	*BA72.10-P-1002-01W
		Model 205 Front door to fender	*BE60.00-P-1008-01BB
		Model 205.0/1/2 Front door to Rear door	*BE60.00-P-1009-01BB
		Model 205.0/1/2 Front door trim to Rear door trim	*BE60.00-P-1011-01BB
		Model 205.3/4 Panel side member to Front door	*BE60.00-P-1030-01BB
		Model 205.3/4 Front door to side wall	*BE60.00-P-1007-01BB
		Model 205.3/4 Front door window to Rear side window	*BE60.00-P-1029-01BB
		Model 213 Front door to fender	*BE60.00-P-1007-01GA
		Model 213 Front door to Rear door	*BE60.00-P-1008-01GA
		Model 213 Front door trim to Rear door trim	*BE60.00-P-1010-01GA
		Model 253 Front door to fender	*BE60.00-P-1006-01FA
		Model 253 Front door to Rear door	*BE60.00-P-1007-01FA
		Model 253 Front door trim to Rear door trim	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1
10	Loosen bolts (11, 12) on Front passenger door (1), adjust transition to Front fender and tighten corresponding bolts (11, 12)	When adjusting transition to Front fender.
	Note on the calculation of the		AH00.00-P-0015-01CW
	Tightening torque when using insert or socket tools with various effective lengths	Do not loosen bolts (11, 12) simultaneously. If the Front passenger door (1) comes into contact with other components, the paint can be damaged. Do not tension hinges (2, 3) when adjusting. Otherwise the hinges (2, 3) can be damaged. The contour of the Front fender must align with the contour of the Front passenger door (1) or project by a maximum of 1 mm. To tighten bolts (11, 12) use torque wrench (15) in combination with bent bit holder (16).
		Hinge bolt on Front door	*BA72.10-P-1001-01W
11	Position lock striker (13) on B-pillar and screw in bolts (14) to stop	It should still be possible to adjust the lock striker (13).
12	Align the lock (13) by carefully closing the passenger door (1).	Model 205.0/1/2, 213, 253, 293 The contour of the Front passenger door (1) must align with the contour of the Rear door or project by a maximum of 1 mm. Model 205.3/4 The contour of the Front passenger door (1) must align with the contour of the side wall or project by a maximum of 1 mm.
13	Tighten bolts (14) on lock striker (13) on B-pillar	Bolt lock on B-pillar	*BA72.10-P-1004-01W
	Install
14	Repair paint damage on screw heads (11, 12)	If the transition to the Front fender is adjusted.
15	If the transition to the Front fender is adjusted.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
16	Install upper insulation insert (9).	If gap dimensions have been adjusted.
17	Clip right A-pillar fuse box (F1/3) into A-pillar (8)	If gap dimensions have been adjusted.
18	Install door sill paneling (7)	If gap dimensions have been adjusted. Model 205.0/1/2, 213, 253, 293	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
19	Install glove box (6).	If gap dimensions have been adjusted. Model 205, 253, 293	AR68.10-P-1400LW
		Model 213	AR68.10-P-1402LWE
20	Connect the ground wire of the battery.	If gap dimensions have been adjusted. Model 205, 213, 253	AR54.10-P-0003LW
		Model 293	AR54.10-P-0003EQ
	Calibrate
21	Calibrate right side camera with diagnostic system.
		Model 293 With Code 501 (360° - Camera)	AD00.00-P-2000-06FR
		Model 205, 213, 253 With Code 501 (360° - Camera)	AD00.00-P-2000-04B

Fig 1: Identifying Feeler gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
