Remove/Install WLAN Antenna - AR82.85-P-0004FR
Model 257, 290
up to model year 2021

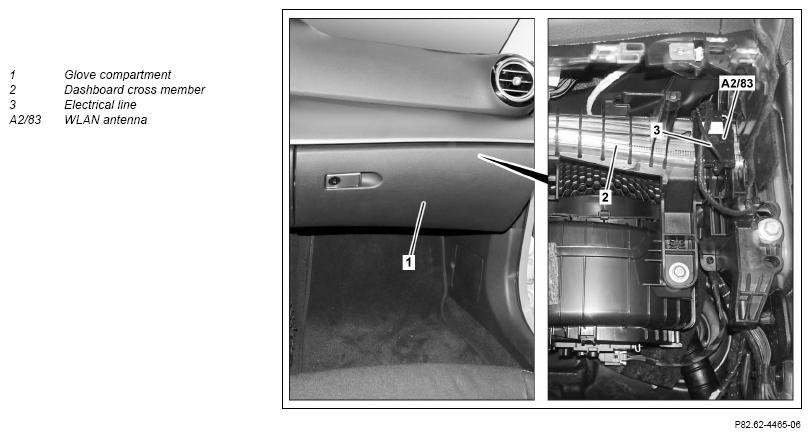

Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Remove glove compartment (1). | AR68.10-P-1402FR | |
| 2 | Remove head unit (A26/17) far enough to gain access to electrical connectors at rear of unit. | AR82.85-P-1101FR | |
| 3 | Place head unit (A26/17) to one side with electrical lines connected. | Place head unit (A26/17) on a clean dry cloth. Otherwise, components of the instrument panel or center console may be damaged. |
|

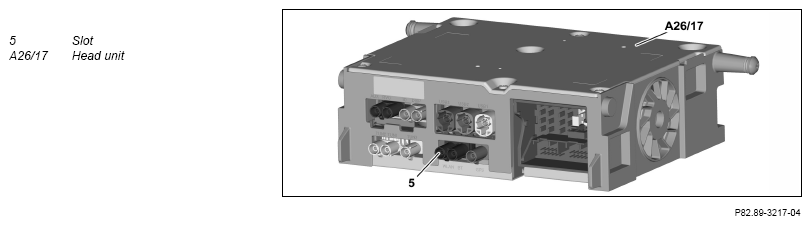

| 4 | Disconnect electrical line (3) of WiFi antenna (A2/83) from slot (5) of head unit (A26/17). | ||
| 5 | Cut through electrical line (3) of WiFi antenna (A2/83) at both ends as close as possible to instrument panel wiring harness. | ||
| 6 | Remove severed section of factory-installed electrical line (3). | ||
| 7 | Unclip WiFi antenna (A2/83) from instrument panel crossmember (2) and remove. | ||
| Install | |||
| 8 | Clip new WiFi antenna (A2/83) into instrument panel crossmember (2). | ||
| 9 | Route electrical line (3) of new WiFi antenna (A2/83) along instrument panel wiring harness to device installation slot of head unit (A26/17) and fix in place with cable ties. | ||
| 10 | Connect electrical line (3) of new WiFi antenna (A2/83) to slot (5) of head unit (A26/17). | ||
| 11 | Install head unit (A26/17). | AR82.85-P-1101FR | |
| 12 | Install glove compartment (1). | AR68.10-P-1402FR |
