Remove/Install Remote Park-Pilot/Stationary Heater Antenna Splitter - AR82.70-P-0006FR
Model 257
with code 503 (Remote-controlled parking)
with code B24 (Remote control for Auxiliary heating)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear shelf | AR68.30-P-4581FR | |
| 2 | Lift foam material in the center underneath the rear shelf | ||

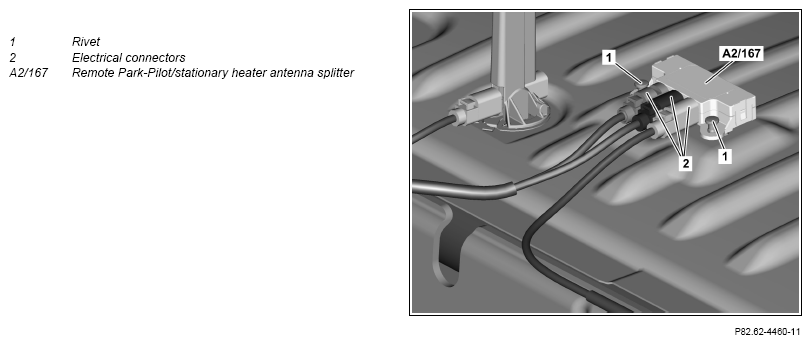

| 3 | Remove rivets (1) | ||
| 4 | Remove Remote Parking Pilot/stationary heater antenna splitter (A2/167) and disconnect electrical connectors (2) | ||
| 5 | Install in the reverse order |
