Remove/Install Rear Shelf - AR68.30-P-4581FR

Model 257

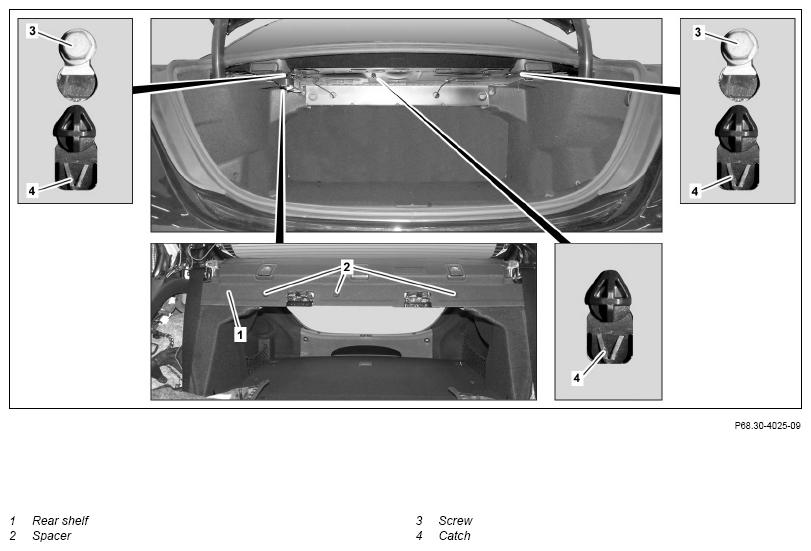

Fig 1: Rear Shelf Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

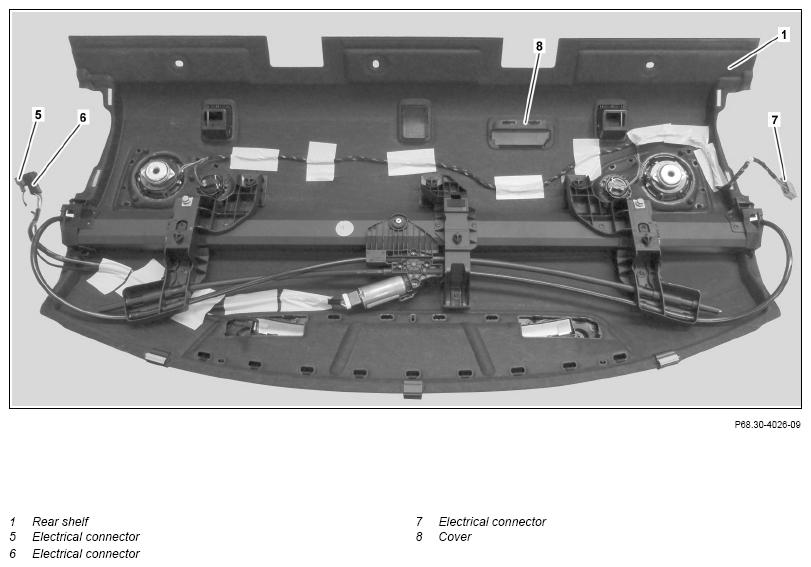

Shown on model 257 with code 811 (Advanced Sound System) and with code 540 (Electric roller sunblind for rear window)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove both C-pillar trims and guide out of working area along seat belts	Do not remove belt end fittings.	AR68.30-P-4490FR
2.1	Fold over folding seat backrests	Model 257 with code 287 (Folding seat backrests in rear passenger compartment)
2.2	Remove backrest in rear	Model 257 except code 287 (Folding seat backrests in rear passenger compartment)	AR91.12-P-1713FR
3	Remove anchor fitting of center seat belt	Model 257 except code 287 (Folding seat backrests in rear passenger compartment) Ensure bulb is correctly installed. Bolt, rear belt end fitting	*BA91.40-P-1005-01U
4	Remove spacers (2)	Clip remover	Fig 2
5	Loosen screws/bolts (3)
6	Release catches (4) on rear shelf (1) and push rear shelf (1) slightly toward front	Ensure correct seating of arrests (4).
7	Disconnect electrical connection (5)
8	Disconnect electrical connector (6)	Model 257 with code 540 (Electric sunblind for rear window)
9	Disconnect electrical connector (7)	Model 257 with code 810 (Sound system) Model 257 with code 811 (Advanced sound system)
10	Lift rear shelf (1) and guide center seat belt with anchor fitting through cover (8) of center seat belt guide	Model 257 except code 287 (Folding seat backrests in rear passenger compartment)
11	Remove rear shelf (1) from vehicle	Helper required.
12	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
