Remove/Install Rear Axle Level Sensor - AR82.10-P-0005FR

Model 257, 290

Fig 1: Rear Axle Level Sensor Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Shown on model 257 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear wheel.		AR40.10-P-1102A
2	Disconnect electrical connector (1) from rear level sensor (B22/7, B22/10).
3	Unclip mount of electric line from holder (5).
4	Unscrew nut (2) and unhook linkage (3) from rear level sensor (B22/7, B22/10).	Do not twist rear level sensor (B22/7, B22/10). Pay attention to installation position.

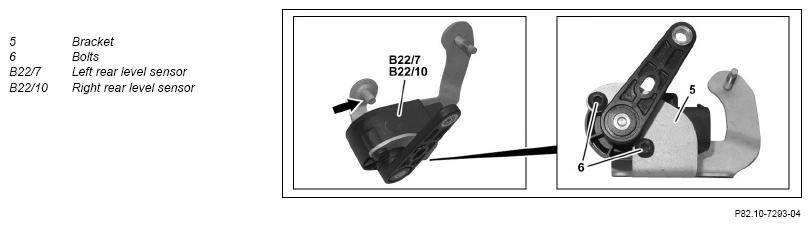

5	Unscrew nut (4) and remove rear level sensor (B22/7, B22/10) with holder (5).	Ensure that pin (arrow) at bracket (5) is seated correctly in corresponding opening in rear axle carrier.
6	Remove screws (6) and remove rear level sensor (B22/7, B22/10) from holder (5).	When replacing rear level sensor (B22/7, B22/10).
7	Install in the reverse order.
8	Calibrate rear level sensor (B22/7, B22/10) with vehicle diagnosis system.	When replacing rear level sensor (B22/7, B22/10).
			AD00.00-P-2000-06FR
	Check
9	Check and correct headlamp adjustment.	When replacing rear level sensor (B22/7, B22/10).
		Model 290	AP82.10-P-8260O
		Model 257	AP82.10-P-8260L
