Remove/Install NFC Antenna - AR82.62-P-0004FR
Model 257
with code 897 (Front wireless telephone charging)
Model 257
with code 899 (Multifunction telephony)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

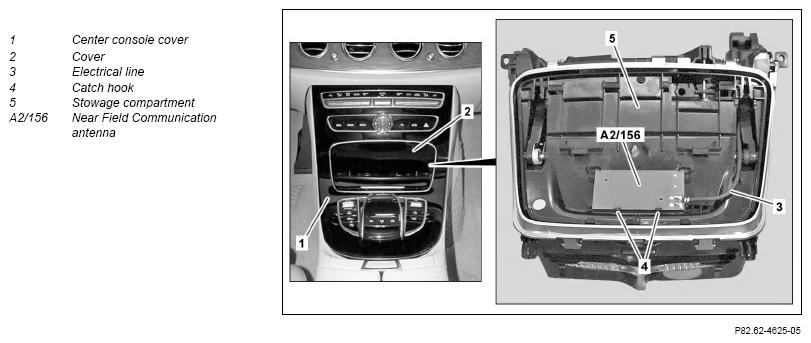

| 1 | Remove center console cover (1) | AR68.20-P-2350FR | |
| 2 | Remove stowage compartment (5) from cover on center console (1) | ||
| 3 | Unclip cover (2) towards rear, opposite the direction of travel, and remove from stowage compartment (5) | Do not use sharp-edged tools. Otherwise, the cover (2) may be damaged. Check for correct positioning of the cover (2) before clipping it into place. Otherwise, the fasteners and the cover (2) may be damaged. |
|
| 4 | Disconnect electrical connector from mobile phone cradle control unit and electric line (3) | ||
| 5 | Release catch hooks (4) and guide Near Field Communication antenna (A2/156) with electrical hose (3) outwards and remove it | ||
| 6 | Install in the reverse order |
