Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032FR

Model 257

Shown on model 257 with code 448 (Touchpad)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Loosen center console cover (1) and lift at rear until electrical connector (2) is accessible.		AR68.20-P-2350FR
2	Disconnect electrical connection (2).
3	Insert removal fixtures (3) into multimedia connection unit (A90/5) and pull multimedia connection unit (A90/5) out of center console.	Removal assembly	Fig 1
4	Operate locks (arrows) and pull out removal fixtures (3).
	Install
5	Push multimedia connection unit (A90/5) into center console.
6	Connect electrical connector (2).
7	Install center console cover (1).		AR68.20-P-2350FR

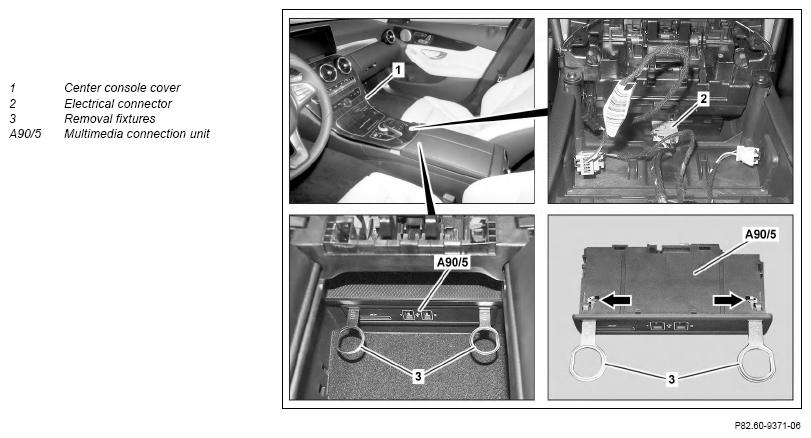

Fig 1: Identifying Removal Assembly (000 589 88 63 00)
