Remove/Install Front Axle Level Sensors - AR82.10-P-0004FR

Model 257, 290

Shown on model 257 on left side of vehicle

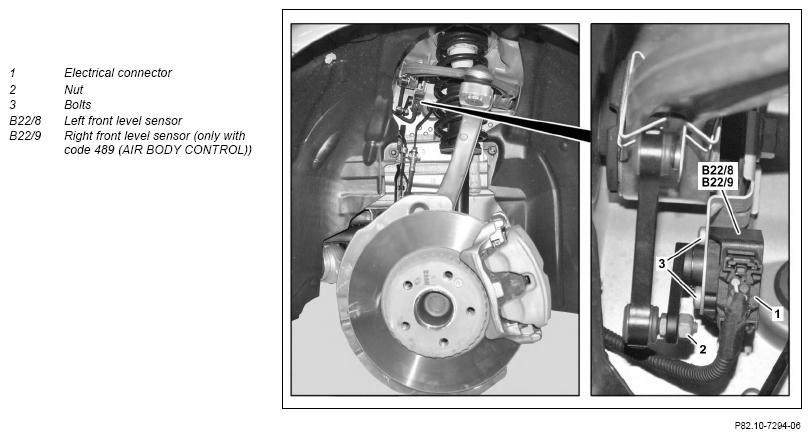

Fig 1: Front Axle Level Sensors Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove left or right front wheel.		AR40.10-P-1102A
2	Disconnect electrical connector (1) from front level sensor (B22/8, B22/9).
3	Unscrew nut (2) and unhook linkage from front level sensor (B22/8, B22/9).	Do not twist front level sensor (B22/8, B22/9). Pay attention to installation position.
4	Remove screws (3) and remove front level sensor (B22/8, B22/9).
5	Install in the reverse order.
	Calibrate
6	Calibrate front level sensor (B22/8, B22/9) with vehicle diagnosis system.	When replacing front level sensor (B22/8, B22/9).
			AD00.00-P-2000-06FR
	Check
7	Check and correct headlamp adjustment.	When replacing front level sensor (B22/8, B22/9).
		Model 257	AP82.10-P-8260L
		Model 290	AP82.10-P-8260O
