Remove/Install Dedicated Short-Range Communications (DSRC) Control Unit - AR82.88-P-0005FR
Model 257, 290
with code 498 (Japanese version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission Dedicated Short-Range Communications control unit (A50/6). | When replacing the Dedicated Short-Range Communications control unit (A50/6). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Open glove compartment. | ||

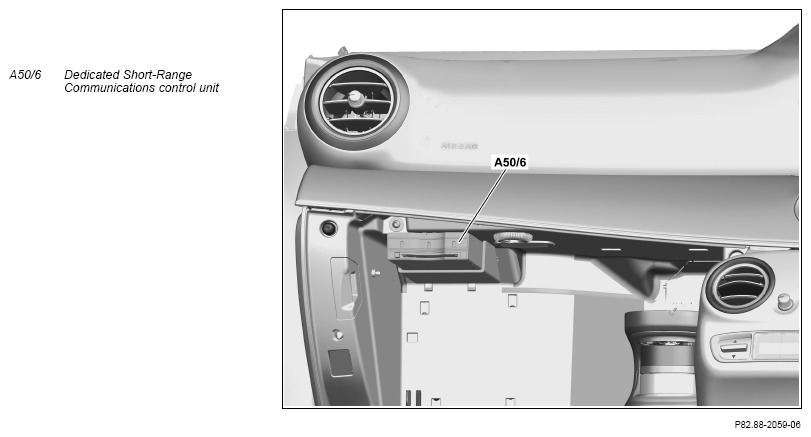

| 4 | Unclip Dedicated Short-Range Communications control unit (A50/6) with holder. | ||
| 5 | Disconnect electrical connectors from Dedicated Short-Range Communications control unit (A50/6) and remove Dedicated Short-Range Communications control unit (A50/6) with holder. | ||
| 6 | Unclip Dedicated Short-Range Communications control unit (A50/6) from holder. | When replacing the Dedicated Short-Range Communications control unit (A50/6). | |
| 7 | Install in the reverse order. |
