Remove/Install Bluetooth Antenna - AR82.62-P-8980FR
Model 257, 290

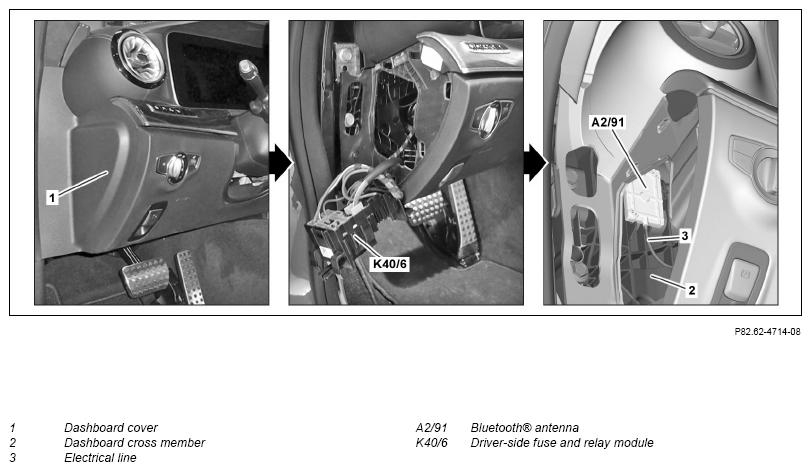

Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 2 | Remove instrument panel cover (1). | Fig 2 | |
| 3 | Release driver side fuse and relay module (K40/6) and place to one side with lines attached. | AR54.15-P-0003FR | |
| 4 | Remove driver knee airbag. | AR91.60-P-0200FR | |
| 5 | Remove head unit (A26/17) far enough to gain access to electrical connectors at rear of unit. | AR82.85-P-1101FR | |
| 6 | Place head unit (A26/17) to one side with electrical lines connected. | Place head unit (A26/17) on a clean dry cloth. Otherwise, components of the instrument panel or center console may be damaged. |
|

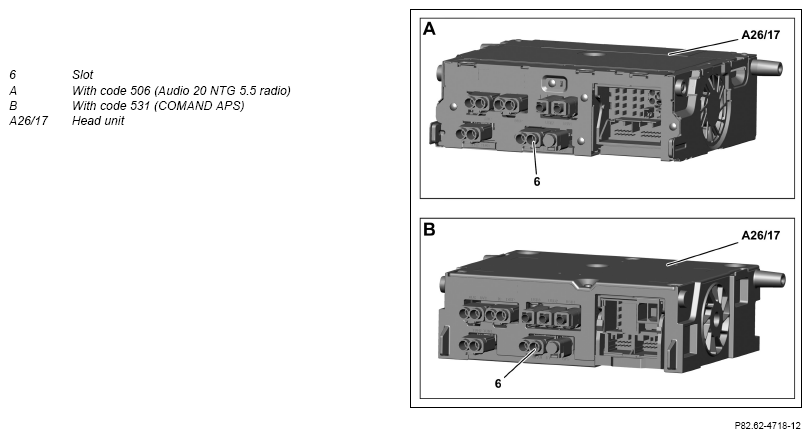

| 7 | Disconnect electric line (3) of Bluetooth® antenna (A2/91) from slot (6) of head unit (A26/17). | ||
| 8 | Cut through electric line (3) of Bluetooth® antenna (A2/91) at both ends as close as possible to the instrument panel wiring harness. | ||
| 9 | Remove severed section of factory-installed electric line (3). | ||
| 10 | Unclip and remove Bluetooth® antenna (A2/91) from instrument panel crossmember (2). | ||
| Install | |||
| 11 | Clip new Bluetooth® antenna (A2/91) onto instrument panel crossmember (2). | ||
| 12 | Route electric line (3) of new Bluetooth® antenna (A2/91) along instrument panel wiring harness to device installation opening of head unit (A26/17) and fix in place using cable ties. | ||
| 13 | Connect electric line (3) of new Bluetooth® antenna (A2/91) to slot (6) of head unit (A26/17). | ||
| 14 | Install head unit (A26/17). | AR82.85-P-1101FR | |
| 15 | Install driver knee airbag. | AR91.60-P-0200FR | |
| 16 | Install fuse and relay module on driver's side (K40/6). | AR54.15-P-0003FR | |
| 17 | Install instrument panel cover (1). | ||
| 18 | Connect ground line to battery. | AR54.10-P-0003FR |
