Overview Of System Components For ENERGIZING Convenience Control - GF82.90-P-9992FR
Model 257, 290
up to model year 2021
with code P72 (ENERGIZING comfort control)

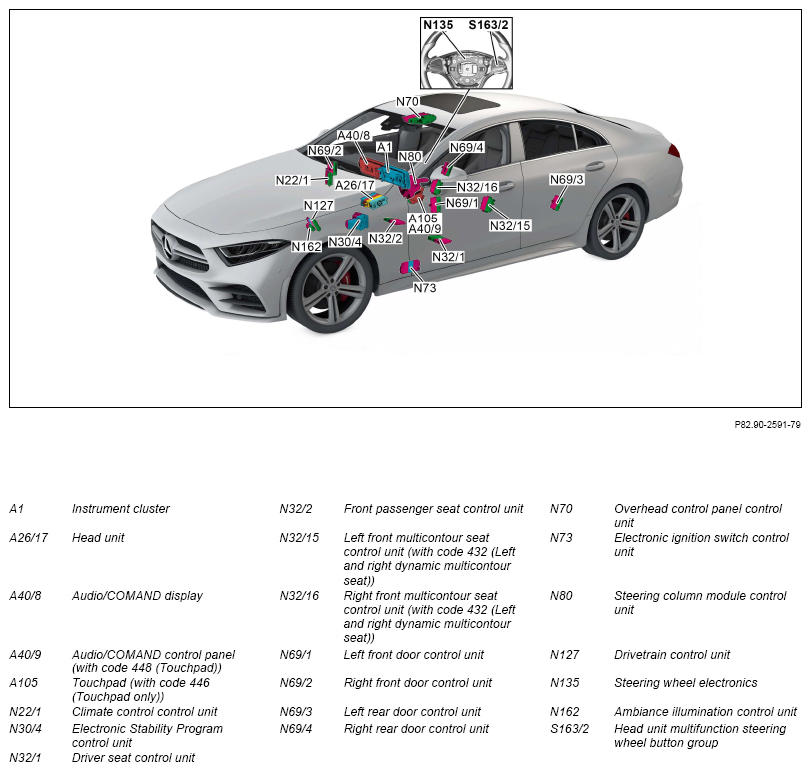

Overview of system components, shown on model 257

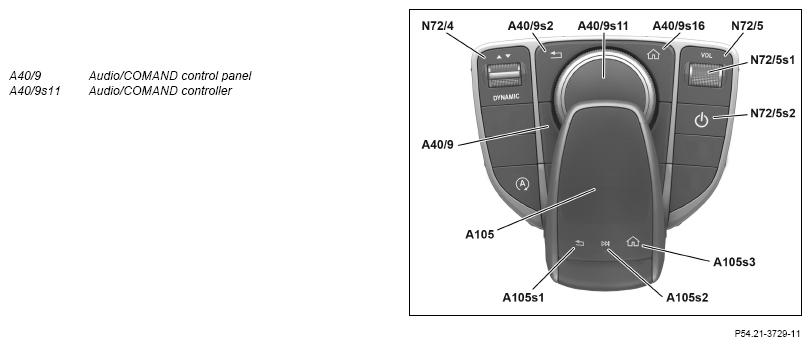

Shown with code 448 (Touchpad) on model 257
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) with code P72 (ENERGIZING comfort control) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257 up to model year 2021 with code 531 (COMAND APS) with code P72 (ENERGIZING comfort control) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FR | |
| Component description for Audio/COMAND control panel | Model 257 up to model year 2021 with code P72 (ENERGIZING comfort control) except code 446 (Touchpad only) A409, A40/9s11 |
GF54.21-P-4501FR | |
| Touchpad, component description | Model 257 up to model year 2021 with code 446 (Touchpad only) with code P72 (ENERGIZING comfort control) Model 257 up to model year 2021 with code 448 (Touchpad) with code P72 (ENERGIZING comfort control) A105 |
GF54.21-P-4511FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Component description for driver seat control unit | Model 257 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) Model 257 up to model year 2021 with code 278 (Fully electric front seats) with code P72 (ENERGIZING comfort control) N32/1 |
GF91.29-P-5231FR | |
| Component description for front passenger seat control unit | Model 257 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) Model 257 up to model year 2021 with code 278 (Fully electric front seats) with code P72 (ENERGIZING comfort control) N32/2 |
GF91.29-P-5241FR | |
| Multicontour seat control unit (MCS), component description | Model 257 up to model year 2021 with code 432 (Dynamic seats left and right) with code P72 (ENERGIZING comfort control) N32/15, N32/16 |
GF91.25-P-5201FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drivetrain control unit, component description | Model 257 with engine 256.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141LF | |
| Model 257 with engine 264.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141MRP | ||
| Model 257 with engine 656.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141OIA | ||
| Model 257 with engine 654.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141ORD | ||
| Ambiance illumination control unit, component description | Model 257 up to model year 2021 with code 891 (Premium ambiance illumination) with code P72 (ENERGIZING comfort control) N162 |
GF82.20-P-5161FR | |
| Table of contents for function description of ENERGIZING convenience control | GF82.90-P-0996FR |
