Remove/Install Emergency Call System Antenna - AR82.95-P-0017FR
Model 257
with code 360 (HERMES UMTS)
Model 257
with code 362 (HERMES communications module LTE)
Model 257
with code 364 (HERMES - UMTS communications module for Russia)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear shelf | AR68.30-P-4581FR | |

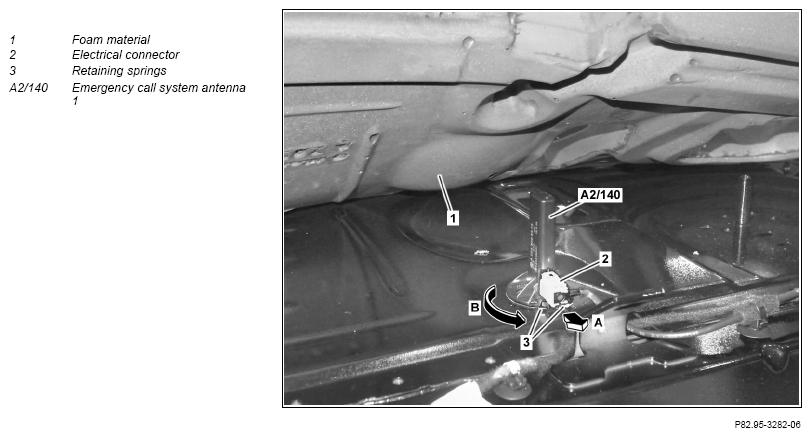

| 2 | Lift foam material (1) | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Lift up safety springs (3) and pull emergency call system antenna 1 (A2/140) forward up to end stop (arrow A) | ||
| 5 | Turn emergency call system antenna 1 (A2/140) through 90° in counterclockwise direction (arrow B) and remove | ||
| 6 | Install in the reverse order |
