Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MSA
Transmission 725.0 in model 213, 238, 257, 290 with engine 256

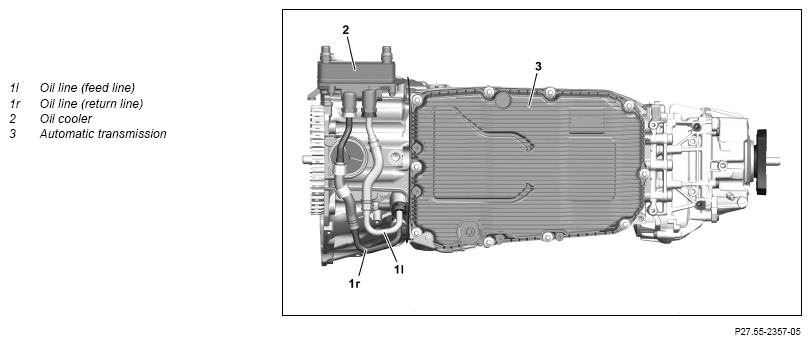

Shown on transmission 725.0 for engine 256 with code M005 (4MATIC)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove lower center and rear engine compartment lining. | Transmission 725.0 in model 290 with engine 256 | AR61.20-P-1105FRX |
| Transmission 725.0 in model 213, 238 with engine 256 | AR61.20-P-1105LWE | ||
| Transmission 725.0 in model 257 with engine 256 |
AR61.20-P-1105FR | ||
| 2 | Clean area surrounding the oil lines (1 l, 1 r) thoroughly. | ||
| 3 | Remove oil lines (1 l, 1 r) from automatic transmission (3) and seal openings with suitable stop plugs. | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 4 | Remove oil lines 1r) from oil cooler (2), seal openings with suitable stop plugs and remove downwards. | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 5 | Check seals in oil cooler and in threaded fitting in the automatic transmission (3) for any signs of leakage. | If the seals are leaky, ↓ replace threaded fitting in automatic transmission (3) or oil cooler. |
|
| AR27.55-P-1000MSA | |||
| *BA27.10-P-1007-04H | |||
| 6 | Install in the reverse order. | ||
| 7 | Check and correct oil level in automatic transmission (3). | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run and check oil lines 1r) and oil cooler (2) for leak tightness. | ||
| 9 | Install bottom center and rear engine compartment paneling. | Transmission 725.0 in model 290 with engine 256 | AR61.20-P-1105FRX |
| Transmission 725.0 in model 213, 238 with engine 256 | AR61.20-P-1105LWE | ||
| Transmission 725.0 in model 257 with engine 256 | AR61.20-P-1105FR |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
