Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000MSA
Transmission 725.0 in model 213, 238, 257, 290 with engine 256
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining | Transmission 725.0 in model 290 with engine 256 | AR61.20-P-1105FRX |
| Transmission 725.0 in model 213, 238 with engine 256 | AR61.20-P-1105LWE | ||
| Transmission 725.0 in model 257 with engine 256 |
AR61.20-P-1105FR | ||

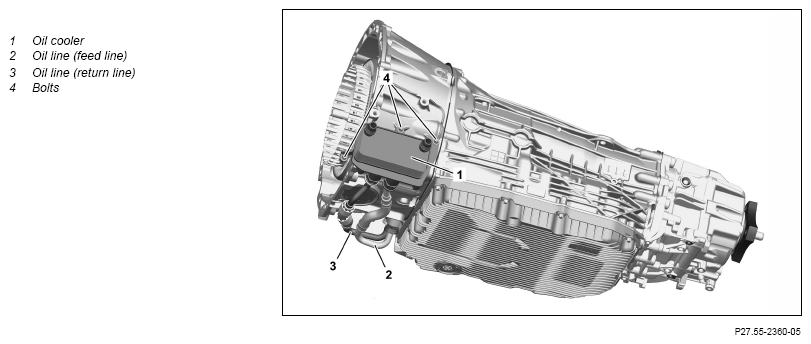

| 2 | Remove oil lines (2, 3) from oil cooler (1) and seal with suitable stop plugs | AR27.10-P-0501-03LF | |
| Fig 3 | |||
| 3 | Disconnect coolant hoses | Fig 2 | |
| 4 | Remove coolant hoses from oil cooler (1) and seal connections with protective covers | AR20.20-P-7441-01RQ | |
| Fig 1 | |||
| 5 | Remove screws/bolts (4) of oil cooler (1) and remove oil cooler (1) | *BA27.55-P-1018-01D | |
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check fluid level in automatic transmission and adjust to correct level | AR27.00-P-0270EWN | |
| 8 | Check engine cooling system for leak tightness | AR20.00-P-1010MSA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, check oil line s (2, 3) and oil cooler (1) for leak tightness | ||
| 10 | Install center and rear sections of lower engine compartment lining | Transmission 725.0 in model 257 with engine 256 | AR61.20-P-1105FR |
| Transmission 725.0 in model 290 with engine 256 | AR61.20-P-1105FRX | ||
| Transmission 725.0 in model 213, 238 with engine 256 | AR61.20-P-1105LWE |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1018-01D | Bolt, oil cooler to transmission | Nm | 12 |
