Remove/Install Hydraulic Valve Play Compensation Elements - AR05.00-P-2013MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove camshaft housing. | AR05.20-P-6997MSA | |

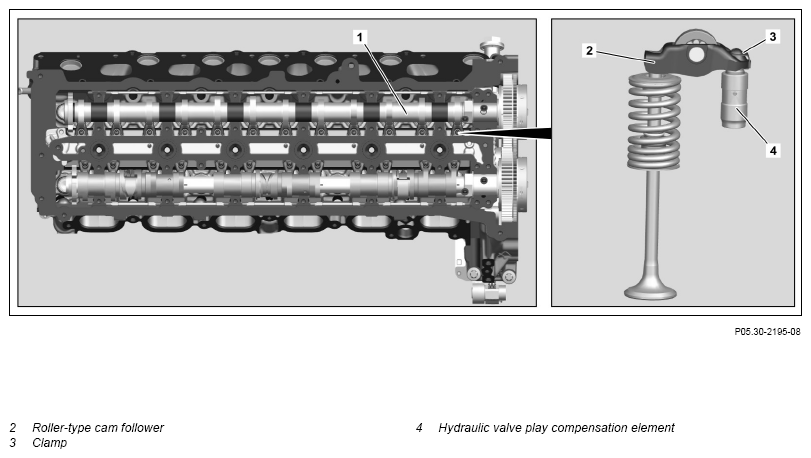

| 2 | Mark roller-type rocker arms (2) and hydraulic valve play compensation elements (4) relative to the cylinder head. | When reusing roller-type rocker arms (2) and hydraulic valve play compensation elements (4). When reusing roller-type rocker arms (2) and hydraulic valve play compensation elements (4), install them in the same place as before. Engine damage can occur otherwise. |
|
| 3 | Remove roller-type rocker arms (2) with hydraulic valve play compensation elements (4). | ||
| Specified engine oils (service) - Overview | BB00.40-P-0223-02A | ||
| 4 | Remove clamps (3) and remove hydraulic valve play compensation elements (4) from roller-type rocker arms (2). | ||
| Check | |||
| 5 | Check hydraulic valve play compensation elements (4). | AR05.00-P-2012MSA | |
| 6 | Install in the reverse order. |
