Remove/Install Guide Wheel For Timing Chain - AR05.10-P-7760MSA
Engine 256.9 in model 213, 238, 257, 290
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove | |||
| 1 | Remove the camshaft positioner of the intake camshaft. | AR05.20-P-7206MSA | |
| 2 | Remove the chain tensioner. | AR05.10-P-7800MSA | |

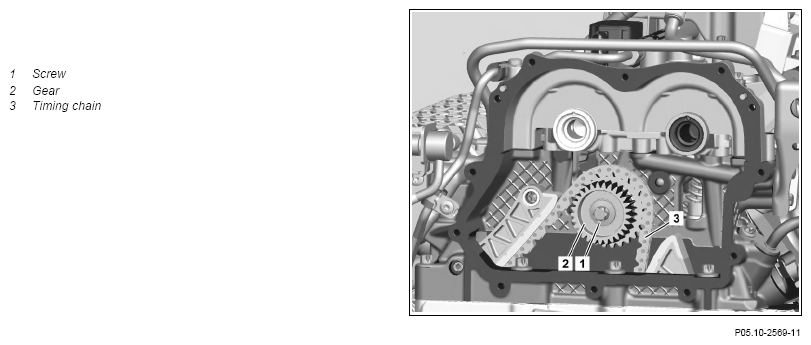

| 3 | Remove screw (1). | ||
| 4 | Remove timing chain (3) from gearwheel (2), detach gearwheel (2) with the bearing journal from the cylinder head, and secure timing chain against falling down. | ||
| 5 | Remove bearing journal from gearwheel (2). | ||
| Check | |||
| 6 | Inspect the gear (2) and journal for scoring and galling and, if necessary, replace the relevant component. | ||
| Install | |||
| 7 | Wet the inner contact surface of the gear (2) with engine oil. | ||
| Specified engine oils (service) - Overview | BB00.40-P-0223-02A | ||
| 8 | Install bearing journal in gearwheel (2). | ||
| 9 | Attach gearwheel (2) with bearing journal to cylinder head and position timing chain (3) on the gearwheel (2). | ||
| 10 | Tighten the screw (1) slightly by hand. | ||
| 11 | Tighten screw (1). | *BA05.10-P-1002-01MRT | |
| 12 | Install the chain tensioner. | AR05.10-P-7800MSA | |
| 13 | Install the camshaft positioner for the intake camshaft. | AR05.20-P-7206MSA |
CAMSHAFT POSITIONER, TIMING CHAIN DRIVE
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA05.10-P-1002-01MRT | Screw/bolt, journal to cylinder head | Nm | 57 |
